Kwik-Switch Acura-Tap
Tension and Compression Tap Chucks

Note! These chucks are compatible with:
14pt Dot Acura-Tap positive drive collets - when using Acura-Tap Nut
Acura-Flex extended range collets - when using Acura-Flex Nut
Acura-Grip maximum accuracy collets - when using Acura-Grip Nut
Acura-Mill positive drive maximum accuracy collets - when using Acura-Grip Nut

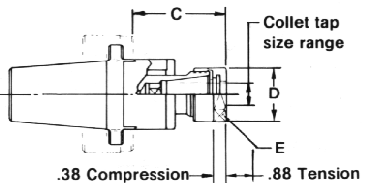

TSD Universal Kwik-Switch AT T&C Tap Chuck drawing

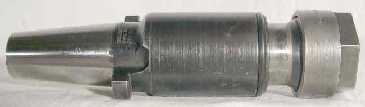

TSD Universal Kwik-Switch 200 AT T&C Tap Chuck # 164314

Universal Engineering (TSD) part numbers, dimensions and specifications
Kwik Switch	Tap Collet Size Range	Universal Part No.	C	D	E	Collet Part #s	Nut Part No.	Wrench Part No.
200	0 to 1/2 Hand 1/8 Pipe	15905	3.58	1.25	1.06 Hex	15839 to 15850	280669	505643
200	3/8 to 7/8 Hand 1/8 to 1/2 Pipe	164314	4.00	1.75	1.05 Hex	15858 to 15871	280677	505651
300	0 to 1/2 Hand 1/8 Pipe	15906	3.12	1.25	1.06 Hex	15839 to 15850	280669	505643
300	3/8 to 7/8 Hand 1/8 to 1/2 Pipe	15914	3.62	1.75	1.05 Hex	15858 to 15871	280677	505651
300	3/4 to 1-1/2 Hand 1/2 to 1-1/4 Pipe	15923	5.56	2.75	2.75 Span	15880 to 15897	280681	505650
400	0 to 1/2 Hand 1/8 Pipe	15928	2.38	1.25	1.06 Hex	15839 to 15850	280669	505643
400	3/8 to 7/8 Hand 1/8 to 1/2 Pipe	15915	2.94	1.75	1.05 Hex	15858 to 15871	280677	505651
400	3/4 to 1-1/2 Hand 1/2 to 1-1/4 Pipe	15924	5.31	2.75	2.75 Span	15880 to 15897	280681	505650

Note: The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
