Universal Engineering Wrenches and Spanners

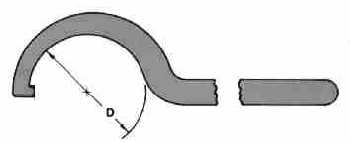

Kwik-Switch Spindle Nut Spanner
Kwik-Switch
Size |
Universal
Part No. |
D |
Length Overall |
Price and
Availability |
100 |
80103 |
2.0" |
? |
Click |
200 |
80203 |
2.56" |
9 1/8" |
Click |
300 |
80303 |
3" |
10 1/4" |
Click |
400 |
80403 |
3.89" |
? |
Click |
[Back to Top of page]
Collet Nut Spanners
Note!
Universal Engineering made at least 2 different configurations of these wrenches.
With at least 3 different numbering systems

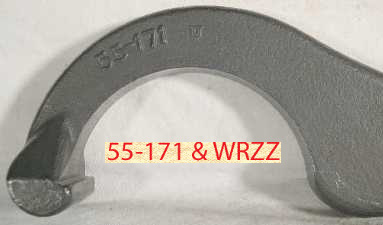

The "dashed" (i.e. 55-171) pn and the "WRxx" (i.e. WXZZ) pn are the older, wider hook style.

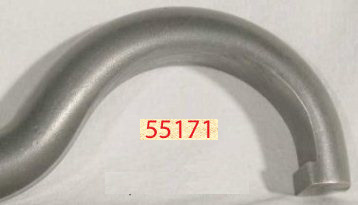

The "non-dashed (i.e. 55171) pn is the latest round body style with the narrower hook.
See the difference in the pictures below.
Universal
Part No. |
Dia. |
Length Overall |
Price and
Availability |
55139
55-139
WRZ |
1.94" |
? |
Click |
55171
55-171
WRZZ |
2.50" |
13.5" |
Click |
505650 |
2.75" |
? |
Click |
85296 |
3.00" |
17.5 |
Click |
55200
55-200
WRXZ |
3.38" |
14" |
Click |
|
|
[Back to Top of page]

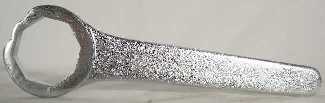

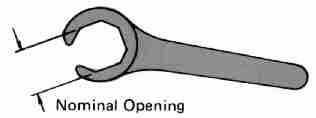

Collet Nut Octagon Wrenches
Universal
Part No. |
Nominal
Opening |
Length Overall |
Price and
Availability |
55029 |
0.68" |
5.5" |
Click |
55068 |
1.00" |
? |
Click |
55105 |
1.25" |
6.5" |
Click |
[Back to Top of page]

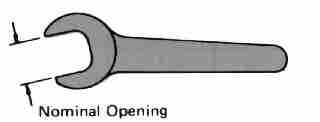

Open End Wrenches
Universal Part No. |
Nominal Opening |
Length Overall |
505643 |
1.06" |
? |
505651 |
1.50" |
? |
[Back to Top of page]

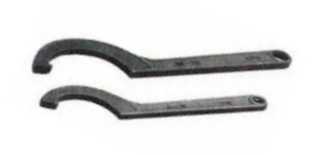

Lug Type Kwik-Switch Wrench for Close Center Distance
Kwik-Switch Size |
Universal Part No. |
100 |
807791 |
200 |
807792 |
300 |
807793 |
[Back to Top of page]
Universal Milling Chuck Wrenches
Universal Part No. |
Description |
Price and
Availability |
5013138 (Old #4613980) |
Wrench for 3/4" size chuck |
Click |
4613981 |
Wrench for 1-1/4" size chuck |
Click |
[Back to Top of page]
Note:
The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
|
