Acura-Grip Collets
Features:
Collets are guaranteed to be .0005 T.I.R. at 8 times the tool diameter,
or a maximum of 4 inches from the face of the collet.
|
|
Compatible collet chucks.
|
Note:
Tool shank must engage the full length of the collet.
Minimum gripping diameter equals nominal hole size minus 0.0025".
Collet must be assembled to nut before inserting in chuck.

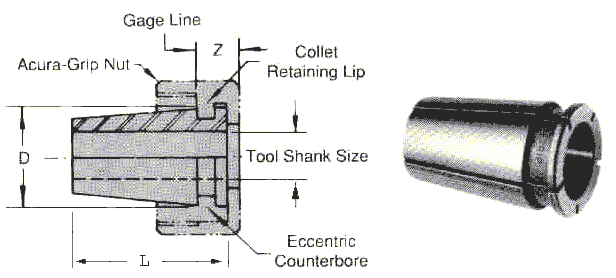

The collet retaining lip has been partially removed by an eccentric counterbore.
Place collet in counterbore.
Move on center with nut.
Insert assembly into chuck.
Universal Engineering (TSD) part numbers, dimensions and specifications
Tool Shank
Size Range |
Universal Part No. |
D |
L |
Z |
Nut
Part No. |
Min. Tool Shank Entry |
Nut Tighten Torque |
Price and
Availability |
1/32 - 3/8 |
90375 |
0.56 |
0.835 |
? |
90376 |
? |
? Ft Lbs. |
Click |
3/16 - 1/2 |
90499* |
0.720 |
0.975* |
0.39 |
90501 |
1.31 |
50 Ft Lbs. |
Click |
3/16 - 1/2 |
90500 |
0.720 |
1.1 |
0.39 |
90501 |
1.31 |
50 Ft Lbs. |
Click |
1/4 - 3/4 |
90749* |
1.131 |
1.625* |
0.53 |
90751 |
2.00 |
75 Ft Lbs. |
Click |
1/4 - 3/4 |
90750 |
1.131 |
1.75 |
0.53 |
90751 |
2.00 |
75 Ft Lbs. |
Click |
7/32 - 1" |
901000 |
1.446 |
2.19 |
0.69 |
901001 |
2.50 |
90 Ft Lbs. |
Click |
1/2 - 1 3/8 |
901375 |
1.909 |
2.67 |
0.72 |
901376 |
2.97 |
110 Ft Lbs. |
Click |
5/8 - 1 5/8 |
901625 |
2.12 |
2.69** |
0.45 |
901626 |
? |
? Ft Lbs. |
Click |
* I don't know why they made shorter versions of some of the AG collets,
I have never found a collet chuck in which the standard length collet didn't work perfectly.
But, I guess there must be one out there somewhere.
** The 22 units I measured ranged from 2.683" to 2.70"
Note:
The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
|
|
