Acura-Mill Collets

Features:
14pt Dot

Postive retention type collet.
14pt Dot

Collets are guaranteed to be .0005 T.I.R. at 8 times the tool diameter,
15pic Space

or a maximum of 4 inches from the face of the collet.
14pt Dot

Acura-Mill Collets use the same nut as the corresponding capacity Acura-Grip Collets.

Sample of Compatible collet chucks.

Note:
14pt Dot Tool shank must engage the full length of the collet.
Minimum gripping diameter equals nominal hole size minus 0.0025".
Collet must be assembled to nut before inserting in chuck.

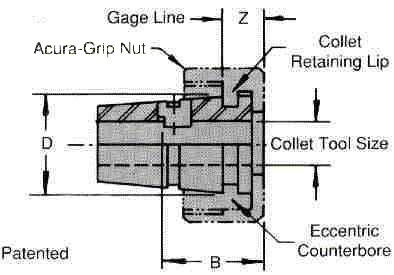

15pic Space The collet retaining lip has been partially removed by an eccentric counterbore.
Place collet in counterbore. Move on center with nut. Insert assembly into chuck.

Universal Engineering (TSD) part numbers, dimensions and specifications
Acura Chuck Max Capacity	Tool Size	Universal Part No.	B	D	Z	Nut Part No.
3/4"	3/8	9300002	0.92	1.131	0.54	90751
3/4"	1/2	9300003	1.06	1.131	0.54	90751
3/4"	5/8	9300004	1.16	1.131	0.54	90751
3/4"	3/4	9300005	1.23	1.131	0.54	90751
1"	3/8	9300007	0.92	1.446	0.69	901001
1"	1/2	9300008	1.06	1.446	0.69	901001
1"	5/8	9300009	1.16	1.446	0.69	901001
1"	3/4	9300010	1.25	1.446	0.69	901001
1"	7/8	9300011	1.25	1.446	0.69	901001
1"	1"	9300012	1.41	1.446	0.69	901001
1-3/8"	3/8	9300014	1.25	1.909	0.72	901376
1-3/8"	1/2	9300015	1.25	1.909	0.72	901376
1-3/8"	5/8	9300016	1.25	1.909	0.72	901376
1-3/8"	3/4	9300017	1.25	1.909	0.72	901376
1-3/8"	7/8	9300018	1.25	1.909	0.72	901376
1-3/8"	1"	9300019	1.39	1.909	0.72	901376
1-3/8"	1-1/4	9300020	1.39	1.909	0.72	901376
1-3/8"	1-3/8	9300021	1.39	1.909	0.72	901376

Check Price and Availability

Note: The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
