Universal - Houdaille - TSD
Acura-Tap Positive Drive Collets

Features:
14pt DotPositive tap drive
14pt DotExcellent axial retension. 		Note: Collet must be assembled to nut before inserting in chuck.
    The collet nut retaining lip has been partially removed by an eccentric counterbore.
    Place collet in counterbore.  Move on center with nut.   Insert assembly into chuck.

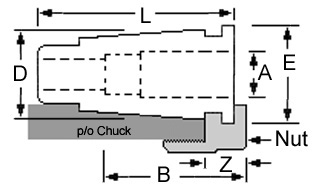

Acura-Tap Collet drawingAcura-Tap Collet Picture
Universal Engineering (TSD) part numbers, dimensions and specifications

Series
Max
Capacity

Tap Size

Universal Part No.

A
Bore
Dia.

B
Tap
Depth

D
Gage
Dia.

E
Lip
Dia.

L
LOA

Z
Gage
Line

Nut
Part No.

Wrench
Part No.

1/2"

#0-#6

15839

.141

1.00

.720

0.77

1.56

.39

280669

505643

1/2"

#8

15840

.168

1.06

.720

0.77

1.56

.39

280669

505643

1/2"

#10

15841

.194

1.06

.720

0.77

1.56

.39

280669

505643

1/2"

#12

15842

.220

1.09

.720

0.77

1.56

.39

280669

505643

1/2"

1/4"

15843

.255

1.09

.720

0.77

1.56

.39

280669

505643

1/2"

5/16"

15844

.318

1.12

.720

0.77

1.56

.39

280669

505643

1/2"

3/8"

15845

.381

1.19

.720

0.77

1.56

.39

280669

505643

1/2"

7/16"

15846

.323

1.22

.720

0.77

1.56

.39

280669

505643

1/2"

1/2"

15847

.367

1.25

.720

0.77

1.56

.39

280669

505643

1/2"

1/8 Pipe SS

15850

.313

1.19

.720

0.77

1.56

.39

280669

505643






Check Price
and
Availability





7/8"

3/8"

15858

.381

1.31

1.131

1.19

2.25

.53

280677

505651

7/8"

7/16"

15859

.323

1.34

1.131

1.19

2.25

.53

280677

505651

7/8"

1/2"

15860

.367

1.38

1.131

1.19

2.25

.53

280677

505651

7/8"

9/16"

15861

.429

1.56

1.131

1.19

2.25

.53

280677

505651

7/8"

5/8"

15862

.480

1.62

1.131

1.19

2.25

.53

280677

505651

7/8"

5/8" Pully

1163993

.625

?

1.131

1.19

2.25

.53

280677

505651

7/8"

11/16"

15863

.542

1.75

1.131

1.19

2.25

.53

280677

505651

7/8"

3/4"

15864

.590

1.84

1.131

1.19

2.25

.53

280677

505651

7/8"

13/16"

15865

.652

1.84

1.131

1.19

2.25

.53

280677

505651

7/8"

7/8"

15866

.697

1.90

1.131

1.19

2.25

.53

280677

505651

7/8"

1/8 Pipe LS

15868

.438

1.31

1.131

1.19

2.25

.53

280677

505651

7/8"

1/4 Pipe

15869

.563

1.31

1.131

1.19

2.25

.53

280677

505651

7/8"

3/8 Pipe

15870

.700

1.44

1.131

1.19

2.25

.53

280677

505651

7/8"

1/2 Pipe

15871

.688

1.56

1.131

1.19

2.25

.53

280677

505651
Check Price
and
Availability

1-1/2"

3/4"

15880

.590

2.00

1.909

2

3.31

.72

280681

505650

1-1/2"

13/16"

15881

.652

2.00

1.909

2

3.31

.72

280681

505650

1-1/2"

7/8"

15882

.697

2.25

1.909

2

3.31

.72

280681

505650

1-1/2"

15/16"

15883

.760

2.28

1.909

2

3.31

.72

280681

505650

1-1/2"

1"

15884

.800

2.38

1.909

2

3.31

.72

280681

505650

1-1/2"

1-1/16 & 1-1/8

15886

.896

2.75

1.909

2

3.31

.72

280681

505650

1-1/2"

1-3/16 & 1-1/4

15888

1.021

3.00

1.909

2

3.31

.72

280681

505650

1-1/2"

1-5/16 & 1-3/8

15889

1.108

2.95

1.909

2

3.31

.72

280681

505650

1-1/2"

1-7/16 & 1-1/2

15891

1.233

3.25

1.909

2

3.31

.72

280681

505650

1-1/2"

1/2 Pipe

15894

.688

1.56

1.909

2

3.31

.72

280681

505650

1-1/2"

3/4 Pipe

15895

.906

1.68

1.909

2

3.31

.72

280681

505650

1-1/2"

1" Pipe

15896

1.125

1.81

1.909

2

3.31

.72

280681

505650

1-1/2"

1-1/4 Pipe

15897

1.313

2.06

1.909

2

3.31

.72

280681

505650
Check Price
and
Availability


Series

Universal
Set Part No.

Collet Set Includes

Gageline Dia

Price and
Availability

1/2" capacity

15943

#6, #8, #10, #12, 1/4, 5/16, 3/8, 7/16, 1/2, 1/8 Pipe SS
(10 Collets with Storage Box)

.720

Click

7/8" capacity

15944

3/8, 7/16, 1/2, 9/16, 5/8, 3/4, 7/8, 1/8 Pipe LS, 1/4 Pipe,
3/8 Pipe, 1/2 Pipe (11 Collets with Storage Box)

1.131

Click

1-1/2" capacity

15946

3/4, 7/8, 1", 1 1/8, 1 1/4, 1 3/8, 1 1/2, 1/2 Pipe, 3/4 Pipe,
1" Pipe, 1 1/4 Pipe (11 Collets without Storage Box)

1.909

Click

Related Links:
14pt Dot Compatible Acura-Tap Collet Chucks.

Note: The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
