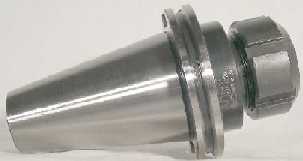

CAT Shank Acura-Series Collet Chucks
CAT tooling is also known as:
CV, V-Flange, Caterpillar, ISO 7388-1, IS 11173 (TC), DIN69871
|
Check Price & Availability
Note! These chucks are compatible with:
Acura-Flex extended range collets - using Acura-Flex Nut
Acura-Grip maximum accuracy collets - using Acura-Grip Nut
Acura-Mill positive drive maximum accuracy collets - using
Acura-Grip Nut

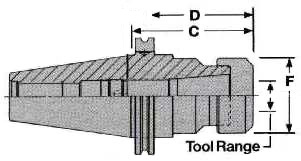

Acura-Flex - Universal Engineering (TSD) part numbers, dimensions and specifications
CAT
Shank |
Tool Range |
Universal Part No. |
C |
F |
Preset
Range D |
Preset
Screw |
Wrench
Part No |
AF Nut
Part No. |
30 |
1/16 to 3/8 |
AF911401 |
2.25 |
1.00 Oct |
1.16 - 2.25 |
601129 |
55068 |
9400002 |
30 |
1/16 to 3/8 |
AF913532 |
4.0 |
1.00 Oct |
1.16 - 2.25 |
601129 |
55068 |
9400002 |
30 |
7/64 to 1/2 |
AF911402 |
2.25 |
1.25 Oct |
1.28 - 2.31 |
601338 |
55105 |
9400020 |
30 |
7/64 to 1/2 |
AF914018 |
3.88 |
1.25 Oct |
1.28 - 2.88 |
601338 |
55105 |
9400020 |
30 |
7/64 to 3/4 |
AF911403 |
2.62 |
1.94 Span |
2.14 - 2.38 |
605535 |
55139 |
9400005 |
40 |
1/16 to 3/8 |
AF912807 |
3.00 |
1.00 Oct |
1.16 - 3.00 |
601129 |
55068 |
9400002 |
40 |
1/16 to 3/8 |
AF913533 |
4.00 |
1.00 Oct |
1.16 - 3.00 |
601129 |
55068 |
9400002 |
40 |
1/16 to 3/8 |
AF913534 |
6.00 |
1.00 Oct |
1.16 - 3.00 |
601129 |
55068 |
9400002 |
40 |
7/64 to 1/2 |
AF91963 |
2.25 |
1.25 Oct |
1.28 - 2.88 |
601338 |
55105 |
9400020 |
40 |
7/64 to 1/2 |
AF914004 |
3.86 |
1.25 Oct |
1.28 - 2.88 |
601338 |
55105 |
9400020 |
40 |
7/64 to 1/2 |
AF913501 |
6.00 |
1.25 Oct |
1.28 - 3.25 |
601338 |
55105 |
9400020 |
40 |
7/64 to 3/4 |
AF911628 |
2.72 |
1.94 Span |
2.14 - 3.50 |
605535 |
55139 |
9400005 |
40 |
7/64 to 3/4 |
AF914005 |
4.09 |
1.94 Span |
2.14 - 3.91 |
605535 |
55139 |
9400005 |
40 |
7/64 to 3/4 |
AF912715 |
6.00 |
1.94 Span |
2.14 - 4.00 |
605535 |
55139 |
9400005 |
40 |
7/32 to 1 |
AF91964 |
3.00 |
2.50 Span |
2.63 - 3.25 |
601862 |
55171 |
9400021 |
40 |
7/32 to 1 |
AF912713 |
6.00 |
2.50 Span |
2.63 - 4.25 |
601862 |
55171 |
9400021 |
45 |
7/32 to 1 |
AF91954 |
2.88 |
2.50 Span |
2.63 - 3.88 |
601862 |
55171 |
9400021 |
45 |
7/32 to 1 |
AF911067 |
4.00 |
2.50 Span |
2.63 - 5.12 |
601862 |
55171 |
9400021 |
45 |
7/32 to 1 |
AF911380 |
6.00 |
2.50 Span |
2.63 - 5.12 |
601862 |
55171 |
9400021 |
45 |
11/32 to 1-3/8 |
AF91955 |
3.19 |
3.00 Span |
3.35 - 3.78 |
602018 |
85296 |
9400011 |
45 |
19/32 to 1-5/8 |
AF91956 |
3.88 |
3.38 Span |
3.36 - 3.44 |
605720 |
55200 |
9400014 |
50 |
1/16 to 3/8 |
AF912983 |
4.00 |
1.00 Oct |
1.16 - 3.00 |
601129 |
55068 |
9400002 |
50 |
1/16 to 3/8 |
AF913535 |
6.00 |
1.00 Oct |
1.16 - 3.00 |
601129 |
55068 |
9400002 |
50 |
7/64 to 1/2 |
AF914006 |
3.86 |
1.25 Oct |
1.28 - 3.25 |
601338 |
55105 |
9400020 |
50 |
7/64 to 1/2 |
AF913469 |
6.00 |
1.25 Oct |
1.28 - 3.25 |
601338 |
55105 |
9400020 |
50 |
7/64 to 3/4 |
AF912984 |
2.72 |
1.94 Span |
2.14 - 3.50 |
605535 |
55139 |
9400005 |
50 |
7/64 to 3/4 |
AF914007 |
5.09 |
1.94 Span |
2.14 - 4.47 |
605535 |
55139 |
9400005 |
50 |
7/32 to 1 |
AF91957 |
2.81 |
2.50 Span |
2.63 - 4.44 |
601862 |
55171 |
9400021 |
50 |
7/32 to 1 |
AF911499 |
4.00 |
2.50 Span |
2.63 - 4.94 |
601862 |
55171 |
9400021 |
50 |
7/32 to 1 |
AF911391 |
6.00 |
2.50 Span |
2.63 - 4.94 |
601862 |
55171 |
9400021 |
50 |
7/32 to 1 |
AF911392 |
8.00 |
2.50 Span |
2.63 - 4.94 |
601862 |
55171 |
9400021 |
50 |
11/32 to 1-3/8 |
AF91958 |
3.12 |
3.00 Span |
3.35 - 4.50 |
602018 |
85296 |
9400011 |
50 |
11/32 to 1-3/8 |
AF911394 |
6.00 |
3.00 Span |
3.35 - 6.00 |
602018 |
85296 |
9400011 |
50 |
19/32 to 1-5/8 |
AF91959 |
3.12 |
3.38 Span |
3.36 - 4.25 |
605720 |
55200 |
9400014 |
50 |
19/32 to 1-5/8 |
AF911397 |
6.00 |
3.38 Span |
3.36 - 6.00 |
605720 |
55200 |
9400014 |
Acura-Grip & Acura-Mill - Universal Engineering (TSD) part #, dimensions and specs
CAT
Shank |
Tool Range |
Universal Part No. |
C |
F |
Preset
Range D |
Preset
Screw |
Wrench
Part No |
AG Nut
Part No. |
30 |
1/16 to 3/8 |
911401 |
2 |
1.00 Oct |
1.16 - 2 |
601129 |
55068 |
90376 |
30 |
1/16 to 3/8 |
913532 |
4 |
1.00 Oct |
1.16 - 2 |
601129 |
55068 |
90376 |
30 |
3/16 to 1/2 |
911402 |
2.39 |
1.25 Oct |
1.25 - 2.44 |
601338 |
55105 |
90501 |
30 |
3/16 to 1/2 |
914018 |
4.00 |
1.25 Oct |
1.28 - 3.00 |
601338 |
55105 |
90501 |
30 |
1/4 to 3/4 |
911403 |
2.53 |
1.94 Span |
1.94 - 2.28 |
605535 |
55139 |
90751 |
40 |
1/16 to 3/8 |
912807 |
3 |
1.00 Oct |
1.16 - 3 |
601129 |
55068 |
90376 |
40 |
1/16 to 3/8 |
913533 |
4 |
1.00 Oct |
1.16 - 3 |
601129 |
55068 |
90376 |
40 |
1/16 to 3/8 |
913534 |
6 |
1.00 Oct |
1.16 - 3 |
601129 |
55068 |
90376 |
40 |
3/16 to 1/2 |
91963 |
2.39 |
1.25 Oct |
1.28 - 3.00 |
601338 |
55105 |
90501 |
40 |
3/16 to 1/2 |
914004 |
4.00 |
1.25 Oct |
1.28 - 3.00 |
601338 |
55105 |
90501 |
40 |
3/16 to 1/2 |
913501 |
6.14 |
1.25 Oct |
1.28 - 3.38 |
601338 |
55105 |
90501 |
40 |
1/4 to 3/4 |
911628 |
2.62 |
1.94 Span |
1.97 - 3.34 |
605535 |
55139 |
90751 |
40 |
1/4 to 3/4 |
914005 |
4.00 |
1.94 Span |
1.97 - 3.81 |
605535 |
55139 |
90751 |
40 |
1/4 to 3/4 |
912715 |
5.91 |
1.94 Span |
1.94 - 3.91 |
605535 |
55139 |
90751 |
40 |
3/8 to 1 |
91964 |
2.94 |
2.50 Span |
2.47 - 3.19 |
601862 |
55171 |
901001 |
40 |
3/8 to 1 |
912713 |
5.94 |
2.50 Span |
2.47 - 4.19 |
601862 |
55171 |
901001 |
45 |
3/8 to 1 |
91954 |
2.81 |
2.50 Span |
2.47 - 3.81 |
601862 |
55171 |
901001 |
45 |
3/8 to 1 |
911067 |
3.94 |
2.50 Span |
2.47 - 5.06 |
601862 |
55171 |
901001 |
45 |
3/8 to 1 |
911380 |
5.94 |
2.50 Span |
2.47 - 5.06 |
601862 |
55171 |
901001 |
45 |
5/8 to 1-3/8 |
91955 |
3.03 |
3.00 Span |
3.00 - 3.50 |
602018 |
85296 |
901376 |
45 |
3/4 to 1-5/8 |
91956 |
3.75 |
3.38 Span |
3.03 - 3.31 |
605720 |
55200 |
901626 |
50 |
1/16 to 3/8 |
912983 |
4 |
1.00 Oct |
1.16 - 3 |
601129 |
55068 |
90376 |
50 |
1/16 to 3/8 |
913535 |
6 |
1.00 Oct |
1.16 - 3 |
601129 |
55068 |
90376 |
50 |
3/16 to 1/2 |
914006 |
4.00 |
1.25 Oct |
1.28 - 3.88 |
601338 |
55105 |
90501 |
50 |
3/16 to 1/2 |
913469 |
6.14 |
1.25 Oct |
1.28 - 3.88 |
601338 |
55105 |
90501 |
50 |
1/4 to 3/4 |
912984 |
2.62 |
1.94 Span |
1.97 - 3.41 |
605535 |
55139 |
90751 |
50 |
1/4 to 3/4 |
914007 |
5.00 |
1.94 Span |
1.97 - 4.38 |
605535 |
55139 |
90751 |
50 |
3/8 to 1 |
91957 |
2.75 |
2.50 Span |
2.47 - 4.38 |
601862 |
55171 |
901001 |
50 |
3/8 to 1 |
911499 |
3.94 |
2.50 Span |
2.47 - 4.88 |
601862 |
55171 |
901001 |
50 |
3/8 to 1 |
911391 |
5.94 |
2.50 Span |
2.47 - 4.88 |
601862 |
55171 |
901001 |
50 |
3/8 to 1 |
911392 |
7.94 |
2.50 Span |
2.47 - 4.88 |
601862 |
55171 |
901001 |
50 |
5/8 to 1-3/8 |
91958 |
2.97 |
3.00 Span |
3.00 - 4.34 |
602018 |
85296 |
901376 |
50 |
5/8 to 1-3/8 |
911394 |
5.84 |
3.00 Span |
3.00 - 5.84 |
602018 |
85296 |
901376 |
50 |
3/4 to 1-5/8 |
91959 |
3.00 |
3.38 Span |
3.03 - 4.12 |
605720 |
55200 |
901626 |
50 |
3/4 to 1-5/8 |
911397 |
5.88 |
3.38 Span |
3.03 - 5.81 |
605720 |
55200 |
901626 |
Check Price & Availability
Related Links:
CAT Shank specs
Collet Nut Spanner specs
Collet Nut Octagon Wrench specs
Note:
The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
|
|
