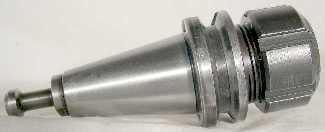

BT Shank Acura-Series Collet Chuck
Note! These chucks are compatible with:
Acura-Flex extended range collets - using Acura-Flex Nut
Acura-Grip maximum accuracy collets - using Acura-Grip Nut
Acura-Mill positive drive maximum accuracy collets - using
Acura-Grip Nut
Check Price & Availability

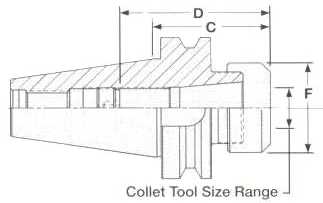

Acura-Flex - Universal Engineering (TSD) part numbers, dimensions and specifications
BT
Shank |
Tool Range |
Universal Part No. |
C |
F |
Preset
Range D |
Preset
Screw |
Wrench
Part No |
AF Nut
Part No. |
30 |
1/16 to 3/8 |
AF913177 |
2.25 |
1.00 Oct |
1.16 - 2.31 |
601129 |
55068 |
9400002 |
30 |
7/64 to 1/2 |
AF913259 |
1.91 |
1.25 Oct |
1.28 - 1.88 |
601338 |
55105 |
9400020 |
30 |
7/64 to 3/4 |
AF913178 |
2.62 |
1.94 Span |
2.14 - 2.38 |
605535 |
55139 |
9400005 |
35 |
1/16 to 3/8 |
AF912805 |
3.00 |
1.00 Oct |
1.16 - 3.00 |
601129 |
55068 |
9400002 |
35 |
7/64 to 1/2 |
AF912683 |
2.58 |
1.25 Oct |
1.28 - 2.12 |
601338 |
55105 |
9400020 |
35 |
7/64 to 3/4 |
AF912204 |
2.25 |
1.94 Span |
2.14 - 2.50 |
605535 |
55139 |
9400005 |
40 |
1/16 to 3/8 |
AF912806 |
3.00 |
1.00 Oct |
1.16 - 3.00 |
601129 |
55068 |
9400002 |
40 |
1/16 to 3/8 |
AF912380 |
5.00 |
1.00 Oct |
1.16 - 3.12 |
601129 |
55068 |
9400002 |
40 |
7/64 to 1/2 |
AF914104 |
3.00 |
1.25 Oct |
1.28 - 3.12 |
601338 |
55105 |
9400020 |
40 |
7/64 to 1/2 |
AF912382 |
5.00 |
1.25 Oct |
1.28 - 3.12 |
601338 |
55105 |
9400020 |
40 |
7/64 to 3/4 |
AF911786 |
2.56 |
1.94 Span |
2.14 - 3.00 |
605535 |
55139 |
9400005 |
40 |
7/64 to 3/4 |
AF914105 |
5.00 |
1.94 Span |
2.14 - 4.00 |
605535 |
55139 |
9400005 |
40 |
7/32 to 1 |
AF911784 |
3.15 |
2.50 Span |
2.63 - 3.12 |
601862 |
55171 |
9400021 |
50 |
7/32 to 1 |
AF91850 |
3.12 |
2.50 Span |
2.63 - 4.50 |
601862 |
55171 |
9400021 |
50 |
11/32 to 1-3/8 |
AF911699 |
3.38 |
3.00 Span |
3.35 - 4.50 |
602018 |
85296 |
9400011 |
50 |
19/32 to 1-5/8 |
AF911806 |
6.5 ? |
3.38 Span |
3.38 - 4.12 |
605720 |
55200 |
9400014 |
Acura-Grip & Acura-Mill - Universal Engineering (TSD) part numbers, dimensions and specifications
BT
Shank |
Tool Range |
Universal Part No. |
C |
F |
Preset
Range D |
Preset
Screw |
Wrench
Part No |
AG Nut
Part No. |
30 |
1/16 to 3/8 |
913177 |
2 |
1.00 Oct |
1.16 - 2 |
601129 |
55068 |
90376 |
30 |
3/16 to 1/2 |
913259 |
2.05 |
1.25 Oct |
1.28 - 2.02 |
601338 |
55105 |
90501 |
30 |
1/4 to 3/4 |
913178 |
2.53 |
1.94 Span |
2.14 - 2.28 |
605535 |
55139 |
90751 |
35 |
1/16 to 3/8 |
912805 |
3 |
1.00 Oct |
1.16 - 3 |
601129 |
55068 |
90376 |
35 |
3/16 to 1/2 |
912683 |
2.70 |
1.25 Oct |
1.28 - 2.27 |
601338 |
55105 |
90501 |
35 |
1/4 to 3/4 |
912204 |
2.16 |
1.94 Span |
1.97 - 2.40 |
605535 |
55139 |
90751 |
40 |
1/16 to 3/8 |
912380 |
3 |
1.00 Oct |
1.16 - 3 |
601129 |
55068 |
90376 |
40 |
1/16 to 3/8 |
912380 |
5 |
1.00 Oct |
1.16 - 3 |
601129 |
55068 |
90376 |
40 |
3/16 to 1/2 |
914104 |
3.14 |
1.25 Oct |
1.28 - 3.27 |
601338 |
55105 |
90501 |
40 |
3/16 to 1/2 |
912382 |
5.14 |
1.25 Oct |
1.28 - 3.27 |
601338 |
55105 |
90501 |
40 |
1/4 to 3/4 |
911786 |
2.47 |
1.94 Span |
1.97 - 2.91 |
605535 |
55139 |
90751 |
40 |
1/4 to 3/4 |
914105 |
4.91 |
1.94 Span |
1.97 - 3.91 |
605535 |
55139 |
90751 |
40 |
3/8 to 1 |
911784 |
3.09 |
2.50 Span |
2.47 - 3.06 |
601862 |
55171 |
901001 |
50 |
3/8 to 1 |
91850 |
3.06 |
2.50 Span |
2.47 - 4.44 |
601862 |
55171 |
901001 |
50 |
5/8 to 1-3/8 |
911699 |
3.22 |
3.00 Span |
3.00 - 4.34 |
602018 |
85296 |
901376 |
50 |
3/4 to 1-5/8 |
911806 |
6.25 |
3.38 Span |
3.03 - 4.00 |
605720 |
55200 |
901626 |
Related Links:
BT Shank specs
Collet Nut Spanner specs
Collet Nut Octagon Wrench specs
Note:
The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
|
