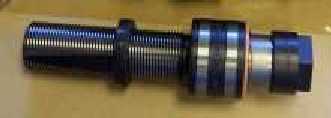

Acura-Tap Max-Float Chucks
(with Acme Shank)
|
|
Also see Straight Shank Float Chucks
Features:
 Total radial float through 7/8" capacity is 0.062" and 1-3/8" is 0.094"
Collet series may be interchanged by merely changing collet nuts.
Note! These chucks are compatible with:
Acura-Tap positive drive collets - when using
Acura-Tap Nut
Acura-Flex extended range collets - when using
Acura-Flex Nut
Acura-Grip maximum accuracy collets - when using
Acura-Grip Nut
Acura-Mill positive drive maximum accuracy collets - when using
Acura-Grip Nut

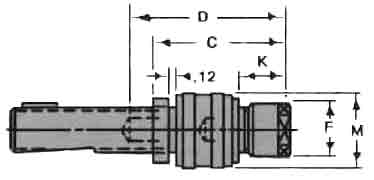

Universal Engineering (TSD) part numbers, dimensions and specifications
Hand Tap
Size Range |
Acme
Shank |
Model |
Universal Part No. |
C |
F |
D |
K |
M |
Float |
Price and
Availability |
#0 to 1/2" |
3/4-12 |
169 |
AT241616 |
2.95 |
1.06 hex. |
1.69 |
1.03 |
1.69 |
0.062 |
~ |
#0 to 1/2" |
7/8-12 |
169 |
AT241617 |
2.95 |
1.06 hex. |
1.69 |
1.03 |
1.69 |
0.062 |
~ |
#0 to 1/2" |
1 1/16-12 |
169 |
AT241621 |
2.95 |
1.06 hex. |
3.62 |
1.03 |
1.69 |
0.062 |
Click |
#0 to 1/2" |
1 3/8-12 |
169 |
AT241622 |
2.95 |
1.06 hex. |
3.62 |
1.03 |
1.69 |
0.062 |
~ |
3/8" to 7/8" |
1 1/16-12 |
219 |
AT241747 |
3.91 |
1.50 hex. |
2.75 |
1.97 |
2.19 |
0.062 |
~ |
3/8" to 7/8" |
1 3/8-12 |
219 |
AT241750 |
3.91 |
1.50 hex. |
5.00 |
1.97 |
2.19 |
0.062 |
Click |
3/8" to 7/8" |
1 7/8-12 |
219 |
AT241751 |
4.03 |
1.50 hex. |
5.00 |
1.97 |
2.19 |
0.062 |
~ |
3/4" to 1-1/2" |
1 3/8-12 |
344 |
AT241941 |
4.72 |
2.75 dia. |
3.84 |
2.50 |
3.44 |
0.094 |
~ |
3/4" to 1-1/2" |
1 7/8-12 |
344 |
AT241942 |
4.84 |
2.75 dia. |
3.84 |
2.50 |
3.44 |
0.094 |
~ |
Hand Tap
Size Range |
Pipe Tap
Size Range |
AT Nut
Part No. |
AF Nut
Part No |
AG Nut
Part No |
#0 to 1/2" |
1/8" |
280669 |
9400020 |
90501 |
3/8" to 7/8" |
1/8" to 1/2" |
280677 |
9400005 |
90751 |
3/4" to 1-1/2" |
1/2" to 1-1/4" |
280681 |
9400011 |
901376 |
Note:
The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
|
