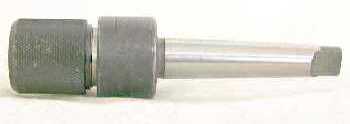

Quick-Change Radial Float Tap Chucks
|
FITH-II with Morse Taper Shank
|
|
Features:
Differential Drive Floating System for Smooth True Float.
Adjustable Centering Mechanism, customize the amount of pressure required to move the tool off center.
For use with machines with synchronized feed and spindle rotation.
Front Side Chip Shield.
Tang Drive chucks accept Tang Drive and Ball Drive tap adapters made by Bilz, Smith, Collis, Universal, Lyndex
and many others. Compatible Tang Drive Tap Adapters.
Ball Drive chucks only accept Ball Drive Adapters.
Compatible Ball Drive Tap Adapters.
Note: These part numbers and dimensions apply to both the Bilz compatible Tang Drive chucks and to the Ball Drive chucks made by Smith Tool. I have both Tang Drive and Ball Drive chucks that are marked identical (e.g. TMS/FITH 222-303).

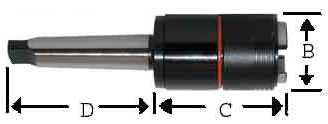

Smith Tool part numbers, dimensions and specifications
Tap Range |
Adapt
Size |
Morse Taper |
Smith Part No. |
Gage
Line |
B |
C |
D |
Float |
0 to 9/16 hand
1/8 pipe |
Size 1 |
MT 2 |
221-302 |
0.700 |
1.26 |
2.61 |
2.94 |
0.06 |
5/16 to 7/8 hand
1/4 to 1/2 pipe |
Size 2 |
MT 3 |
222-303 |
0.938 |
1.96 |
3.56 |
3.69 |
0.08 |
5/16 to 7/8 hand
1/4 to 1/2 pipe |
Size 2 |
MT 4 |
222-304 |
1.231 |
1.96 |
3.60 |
4.63 |
0.08 |
3/4 to 1-3/8 hand
3/4 to 1 pipe |
Size 3 |
MT 3 |
223-303 |
0.938 |
2.83 |
4.83 |
4.00 |
0.09 |
3/4 to 1-3/8 hand
3/4 to 1 pipe |
Size 3 |
MT 4 |
223-304 |
1.231 |
2.83 |
5.13 |
4.63 |
0.09 |
Related Links:
Morse Taper Shank specs.
Tang Drive Tap Adapters.
Ball Drive Tap Adapters.
Overview of Quick-Change Tapping Systems
Note:
The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
|
