Bilz Type Quick-Change Tap Adapters
Click for Overview of Quick Change tapping systems


WE Vertical Line WEN Vertical Line WER & WESR Vertical Line WES Vertical Line WESN

Rigid Adapters (WE) 65 pixel space Check Price & Availability

Size

Tap Range
inch

Tap Range
mm

M

L

T
Tang

C*
Bilz

E*
Bilz

F**
SPI

G**
SPI

H**
SPI

I**
SPI

0

0 to 1/4"

1 - 10

0.51

0.77

?

0.28

.87

?

?

?

?

1

0 to 9/16"
1/8" Pipe

3 - 12

0.75

0.85

0.39

0.28

1.18

0.47

1.25

0.83

1.56

40

1/4 to 13/16"
1/8 to 3/8" Pipe

6 - 18

1.02

1.26

0.53

0.51

1.57

?

?

?

?

2

5/16 to 7/8"
1/4 to 1/2" Pipe

8 - 20

1.22

1.38

0.625

0.43

1.89

0.56

1.3

1.26

2.22

3

13/16 to 1-3/8" Hand
3/4 to 1" Pipe

14 - 33

1.89

2.19

0.94

0.55

2.76

?

?

?

?

4

7/8 to 2-1/4""
3/4 to 2" Pipe

22 - 48

2.36

2.48

1.13

1.65

3.62

?

?

?

?
* These dimensions are typical for Bilz, TSD, Smith, Morris, SPV EU and Guhring units.
** These dimensions are typical for SPI and Tecnara units.





Reduced Depth Adapters (WER & WESR) 65 pixel space Check Price & Availability


The "WER" and "WESR" tap adapters are the same as the standard "WE" and "WES" adapters except the "R" versions have a removable "backer plate" that restricts the depth that the tap can be inserted into the adapter. For use if depth of standard adaptors is too large. The aluminum plate can be removed, drilled for coolant flow or machined to adjust tap depth.

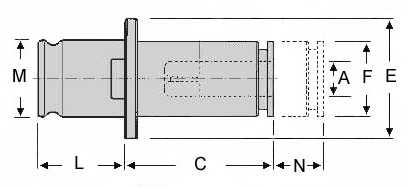

Adjustable Length Rigid Adapters (WEN) 65 pixel space Check Price & Availability
These dimensions are typical for Bilz and TSD

Size

Tap Range
inch

Tap Range
mm

M

L

C

N

F

E

0

0 to 1/4"

1 to 10

0.51

0.77

1.10

0.31

0.51

0.87

1

0 to 9/16"
1/8" Pipe

3 to 12

0.75

0.85

1.30

0.39

0.75

1.18

40

1/4 to 13/16"
1/8 to 3/8" Pipe

6 to 18

1.02

1.26

2.15

0.57

0.98

1.57

2

5/16 to 7/8"
1/4 to 1/2" Pipe

8 to 20

1.22

1.38

2.32

0.59

1.18

1.89

3

13/16 to 1-3/8"
3/4 to 1" Pipe

14 to 33

1.89

2.19

3.23

0.98

1.89

2.76

4

7/8 to 2-1/4""
3/4 to 2" Pipe

22 to 48

2.36

2.48

1.13

?

2.36

3.62
* These dimensions are typical for Bilz & TSD

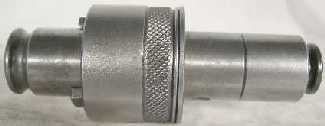

Adjustable Torque (safety clutch) adapters (WES)
Check Price & Availability

Size

Tap Range
inch

Tap Range
mm

M

L

T
Tang

C*
Bilz

E*
Bilz

C**
SPI

E**
SPI

C***
BIG

E***
BIG

0

0 to 1/4"

1 - 10

0.51

0.77

?

0.83

0.91

?

?

?

?

1

0 to 9/16"
1/8" Pipe

3 - 12

0.75

0.85

0.39

0.98

1.26

1.7

1.55

1.58

1.52

40

1/4 to 13/16"
1/8 to 3/8" Pipe

6 - 18

1.02

1.26

0.53

1.18

1.57

?

?

?

?

2

5/16 to 7/8"
1/4 to 1/2" Pipe

8 - 20

1.22

1.38

0.625

1.34

1.97

?

?

2.17

2.3

3

13/16 to 1 3/8"
3/4 to 1" Pipe

14 - 33

1.89

2.19

0.94

1.77

2.83

?

?

?

?

4

7/8 to 2-1/4"
3/4 to 2" Pipe

22 - 48

2.36

2.48

1.13

2.68

3.74

?

?

?

?
* These dimensions are typical for Bilz, TSD, Smith, SPV EUK and Guhring units.
** These dimensions are typical for SPI and Nikken units.
*** These dimensions are typical for BIG units.

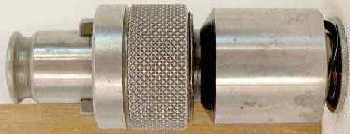

Adjustable Torque adapters with adjustable length (WESN)
Check Price & Availability
More Info coming soon



Quick Change Tap Chucks for sale: 15pt Space Bilz 1 15pt Space Bilz 2 15pt Space Bilz 3 15pt Space Bilz 4 15pt Space Ball-Drive 15pt Space All Others

Note: The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
