Ball-Drive Type Quick-Change Tap Adapters
Click for Overview of Quick Change tapping systems


NTA Vertical Line NTLA Vertical Line NTER Vertical Line TA

Ball-Drive Rigid Adapters - Direct Drive (NTA)

Features:
14pt DotCompatible with Smith Ball-drive and Bilz-type Tang drive tap chucks.

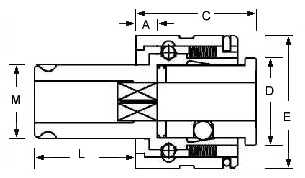

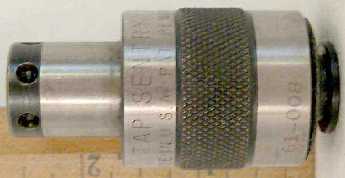

NTA Ball-Drive adapter drawing NTA Ball-Drive adapter picture NTA Ball-Drive adapter picture

Size

Tap Range
inch

Tap Range
mm

M

L

C

E

D

A

Price and
Availability

0

0 to 1/4"

1 - 10

0.51

0.77

0.29

0.86

0.49

0.32

~

1

0 to 9/16"
1/8" Pipe

3 - 12

0.75

0.85

0.37 - 0.38

1.18

0.73

0.31 - 0.39

Click

2

5/16 to 7/8"
1/4 to 1/2" Pipe

8 - 20

1.22

1.38

0.38 - 0.46

1.88

0.73 - 1.17

0.30 - 0.69

Click

3

13/16 to 1-3/8"
3/4 to 1" Pipe

14 - 33

1.89

2.19

0.46 - 0.71

2.75

1.17 - 1.89

0.36 - 1.07

Click
dimensions are typical for Smith adapters

Smith Catalog pages (PDF files)
14pt Dot Smith Tool Direct Drive Tap Adapter Coolant Thru - NTA-ANSI
14pt Dot Smith Tool Direct Drive Tap Adapter Coolant Thru - NTA-DIN 371-376 METRIC
14pt Dot Smith Tool Direct Drive Tap Adapter Coolant Thru - NTA-ISO 529 / 2283 METRIC



Ball-Drive Rigid Adapters with Extended Tap Range (NTER)

Features:
14pt DotCompatible with Smith Ball-drive and Bilz-type Tang drive tap chucks.
14pt DotLight Duty Use Only - These adapters exceed the recommended maximum tap size for some tap chucks into which they fit.

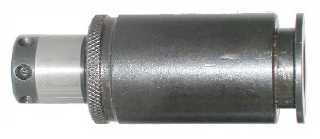

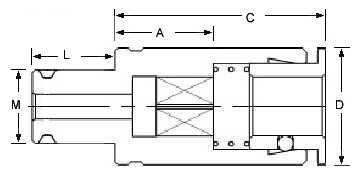

NTER Ball-Drive adapter drawing NTER Ball-Drive adapter picture

Size

Tap Range
inch

M

L

A

C

D

Price and
Availability

1

5/8 to 7/8"
1/4" to 1/2" Pipe

0.75

0.85

0.63 - 0.99

1.45 - 2.19

1.18

~

2

15/16 to 1-3/8"
3/4 to 1" Pipe

1.22

1.38

1.0 - 1.35

1.75 - 3.17

1.88

~

3

1-7/16 to 2-1/2"
1-1/4 to 2" Pipe

1.89

2.19

1.19 - 190

1.65 - 2.90

2.75

~
dimensions are typical for Smith adapters

Smith Catalog page (PDF file)
14pt Dot Smith Tool Direct Drive Tap Adapter Coolant Thru - NTER-ANSI Extended Range



Ball-Drive Adjustable Length Rigid Adapters (NTLA)

Features:
14pt DotCompatible with Smith Ball-drive and Bilz-type Tang drive tap chucks.
14pt DotNTLA adapters can also have extensions.

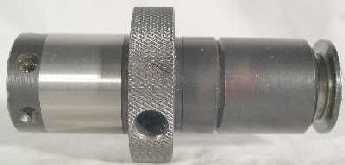

NTLA Ball-Drive adapter drawing NTLA Ball-Drive adapter Picture NTLA Ball-Drive adapter Picture

Size

Tap Range
inch

Tap Range
mm

M

L

A

C

T

D

E

Price and
Availability

0

0 to 1/4"

1 to 10

0.51

0.77

0.61

1.22

0.32

0.49

0.86

~

1

0 to 9/16"
1/8" Pipe

3 to 12

0.75

0.85

0.54 - 0.71

1.39 - 1.65

0.39

0.75

1.18

Click

2

5/16 to 7/8"
1/4 to 1/2" Pipe

8 to 20

1.22

1.38

0.38 - 1.54

1.08 - 2.34

0.39 - 0.59

1.18

1.88

Click
dimensions are typical for Smith adapters

Smith Catalog pages (PDF files)
14pt Dot Smith Tool Direct Drive Tap Adapter Coolant Thru - NTLA-ANSI Solid, Adjustable Length
14pt Dot Smith Tool Direct Drive Tap Adapter - NTLA-ANSI Tension, Adjustable Length
14pt Dot Smith Tool Adapter Length Extensions - TMS-EXT



Ball-Drive Torque Control adapters (TA)

Features:
14pt DotCompatible with Smith Ball-drive and Bilz-type Tang drive tap chucks.

TA Ball-Drive adapter drawing TA Ball-Drive adapter picture

Size

Tap Range
inch

Tap Range
mm

M

L

A*

C*

E*

Price and
Availability

1

0 to 9/16"
1/8" Pipe

3 - 12

0.75

0.85

0.31

0.98

1.26

Click

2

5/16 to 7/8"
1/4 to 1/2" Pipe

8 - 20

1.22

1.38

0.16

1.34

1.97

Click

3

13/16 to 1 3/8"
3/4 to 1" Pipe

14 - 33

1.89

2.19

.04

1.77

2.83

~
dimensions are typical for Smith adapters.

Smith Catalog page (PDF file)
14pt Dot Smith Tool Torque Control Tap Adapter Coolant Thru - TA-ANSI



Tap Chucks for sale
