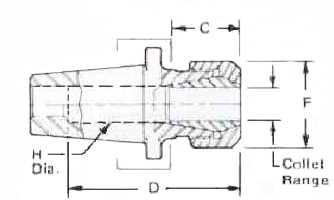

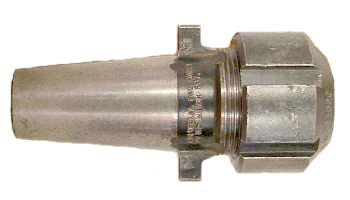

Kwik-Switch Double Taper Collet Chuck

Kwik Switch

Collet
Range

Universal
Part No.

C

D

F

H

Collet Part No.

Wrench Part No.

Nut
Part No.

100

1/16-1/4

80120

0.75

Hole Thru

11/16 Oct

.27

55021

55029

551080

100

1/8-3/8

80121

0.81

Hole Thru

1" Oct

.39

55060

55068

551082

100

3/16-1/2

80122

0.94

2.25

1 1/4 Oct

.52

55097

55105

551084

100

3/8-3/4

80123

?

?

1 15/16 Span

?

55132

55139

551090

200

1/8-3/8

80219

1.12

Hole Thru

1" Oct

.39

55060

55068

551082

200

3/16-1/2

80220

1.28

Hole Thru

1 1/4 Oct

.52

55097

55105

551084

200

3/8-3/4

80221

1.38

3.75

1 15/16 Span

.78

55132

55139

551090

200

3/8-1"

80222

2.03

2.38

2 1/2 Span

1.03

55165

55171

551098

300

1/8-3/8

80318

1.09

Hole Thru

1" Oct

.39

55060

55068

551082

300

3/16-1/2

80319

1.22

Hole Thru

1 1/4 Oct

.52

55097

55105

551084

300

3/16-1/2

80319-S

7.5

Hole Thru

1 1/4 Oct

.52

55097

55105

551084

300

3/8-3/4

80320

1.34

Hole Thru

1 15/16 Span

.81

55132

55139

551090

300

3/8-1"

80321

1.53

4.25

2 1/2 Span

1.03

55165

55171

551098

300

3/8-1"

80321-S

6

8.75

2 1/2 Span

1.03

55165

55171

551098

300

3/4-1 1/2

80322

3.16

2.81

3 3/8 Span

1.56

55194

55200

551108

400

3/16-1/2

80419

128

Hole Thru

1 1/4 Oct

.52

55097

55105

551084

400

3/8-3/4

80420

1.59

Hole Thru

1 15/16 Span

.81

55132

55139

551090

400

3/8-1"

80421

1.84

Hole Thru

2 1/2 Span

1.06

55165

55171

551098

400

3/4-1 1/2

80422

1.84

5.00

3 3/8 Span

1.56

55194

55200

551108
