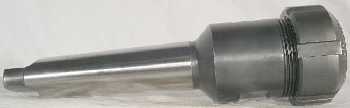

Acura-Flex and Acura-Grip Collet Chucks
(with Morse Taper Shank)
|
Check Price & Availability
Note! These chucks are compatible with:
 Acura-Flex extended range collets - when using
Acura-Flex Nut
Acura-Grip maximum accuracy collets - when using
Acura-Grip Nut
Acura-Mill positive drive maximum accuracy collets - when using
Acura-Grip Nut
Acura-Flex Chucks

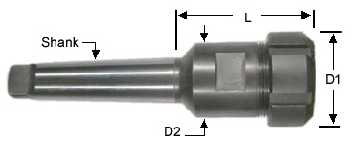

Universal Engineering (TSD) part numbers, dimensions and specifications
Universal
Part No. |
Tool
Range |
Shank |
L |
D1 |
D2 |
Nut
Part No. |
Wrench
Part No. |
AF91640 |
1/16" to 1/4" |
#2 MT |
? |
0.68" Octagon |
? |
9400022 |
55029 |
AF91915 |
1/16" to 3/8" |
#2 MT |
? |
1.00" Octagon |
? |
9400002 |
55068 |
AF91916 |
7/64" to 1/2" |
#2 MT |
? |
1.25" Octagon |
? |
9400020 |
55105 |
AF91917 |
7/64" to 1/2" |
#3 MT |
2.25" |
1.25" Octagon |
? |
9400020 |
55105 |
AF91919 |
7/64" to 3/4" |
#3 MT |
3" |
1.94" Spanner |
? |
9400005 |
55139 |
AF91920 |
7/32" to 1" |
#4 MT |
? |
2.50" Spanner |
? |
9400021 |
55171 |
AF91684 |
11/32" to 1-3/8" |
#5 MT |
? |
3.00" Spanner |
? |
9400011 |
85296 |
Acura-Grip and Acura-Mill Chucks
Universal Engineering (TSD) part numbers, dimensions and specifications
Universal
Part No. |
Tool
Range |
Shank |
L |
D1 |
D2 |
Nut
Part No. |
Wrench
Part No. |
91915 |
1/16" to 3/8" |
#2 MT |
? |
1.00" Octagon |
? |
90376 |
55068 |
91916 |
7/64" to 1/2" |
#2 MT |
? |
1.25" Octagon |
? |
90501 |
55105 |
91917 |
7/64" to 1/2" |
#3 MT |
2.25" |
1.25" Octagon |
? |
90501 |
55105 |
91919 |
7/64" to 3/4" |
#3 MT |
3" |
1.94" Spanner |
? |
90751 |
55139 |
91920 |
7/32" to 1" |
#4 MT |
? |
2.50" Spanner |
? |
901001 |
55171 |
91684 |
11/32" to 1-3/8" |
#5 MT |
? |
3.00" Spanner |
? |
901376 |
85296 |
Note:
The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
|
|
