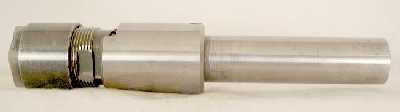

Erickson/Kennametal Tap Collet Chucks
Tension/Compression Compensation, Solid Drive, Straight Shank
|
Features:
Uses Erickson/Kennametal tap collets
Tension/Compression design compensates for differences between machine feed and tap lead.
Right-hand or left-hand tapping.
Alternate springs available to adjust tension pressure.
Positive drive collets prevent tap slippage.
Tension Only

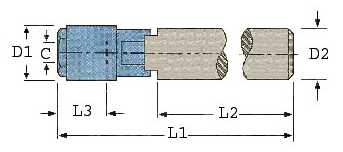

Erickson/Kennametal part numbers, dimensions and specifications
Catalog # |
Collet
Series |
C
Tap Capacity |
T
Tension |
C
Comp. |
D1 |
D2 |
L1 |
L2 |
L3
Deep |
Nut
Hex |
Nut # |
Price and
Availability |
SS075TOJ712 |
J |
#0-1/2
1/16P
M1-M12 |
1/2" |
0 |
0.81 |
0.75 |
7.12 |
5.13 |
0.50 |
0.75 |
LNA204M |
~ |
SS100TOK700 |
K |
#0-5/8
1/16P-1/8P
M1-M16 |
3/4" |
0 |
1.06 |
1.00 |
7.00 |
5.12 |
0.48 |
0.94 |
LNAK04M |
~ |
SS100TOL750 |
L |
#0-7/8
1/16P-1/2P
M5-M24 |
3/4" |
0 |
1.31 |
1.00 |
7.56 |
3.75 |
0.56 |
1.25 |
LNAL04M |
Click |
Tension and Compression
Erickson/Kennametal part numbers, dimensions and specifications
Catalog # |
Collet
Series |
C
Tap Capacity |
T
Tension |
C
Comp. |
D1 |
D2 |
L1 |
L2 |
L3
Deep |
Nut
Hex |
Nut # |
Price and
Availability |
SS075TCJ731 |
J |
#0-1/2
1/16P
M1-M12 |
0.56 |
0.19 |
0.81 |
0.75 |
7.31 |
5.13 |
0.50 |
0.75 |
LNA204M |
~ |
SS100TCK719 |
K |
#0-5/8
1/16P-1/8P
M1-M16 |
0.56 |
0.19 |
1.06 |
1.00 |
7.18 |
5.12 |
0.48 |
0.94 |
LNAK04M |
Click |
SS100TCL769 |
L |
#0-7/8
1/16P-1/2P
M5-M24 |
0.56 |
0.19 |
1.31 |
1.00 |
7.68 |
3.75 |
0.56 |
1.25 |
LNAL04M |
Click |
SS200TCM925 |
M |
1/2 to 1-1/4
3/8P to 1-1/4P |
0.56 |
0.19 |
2.5 |
2.00 |
9.25 |
6.0 |
1.9 |
1.875 |
LNAM04M |
Click |
Alternate Springs
Tap Chuck |
Standard Spring |
Alternate Spring |
Preload
(lb / sq in) |
SS075TOJ712 |
CS0563041156
. |
.
CS0540041150 |
2.37
3.50 |
SS100TOK700 |
CS0600055150
. |
.
CS0540041150 |
7.50
2.37 |
SS100TOL750 |
CS0600049125
. |
.
CS0600055150 |
3.25
7.50 |
SS075TCJ731 |
CS0563041156
. |
.
CS0540041150 |
2.37
3.50 |
SS100TOK719 |
CS0720067125
.
.
.
. |
.
CS0563041156
CS0600049125
CS0600055150
CS0600072150 |
6.75
2.37
3.25
7.50
18.00 |
SS100TCL769 |
CS0600072150
. |
.
CS0600055150 |
18.00
7.50 |
Note:
The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
|
|
