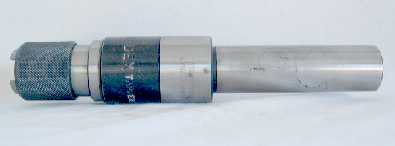

Quick-Change Tap Adapter Holder
Tension and Compression
|
Straight Shank
|
|
Check Price & Availability
Features:
Accepts Bilz, Collis, Universal, Lyndex and many other tap adapters.
Compatible Tap Adapters.
|
These are not advertized as having adjustable Tension and Compression but they actually are very flexible.
The 1.25" of linear T&C motion range is normally divided into 3/8" compression and 7/8" tension,
but this can be reversed by interchanging the 2 spacers (sections of tubing) on the screw inside the shank.
Or any ratio of T&C that totals 1.25" or less can be created with custom spacers. I have even seen extra long spacers
used in these to create a rigid chuck with no Tension or Compression.
|

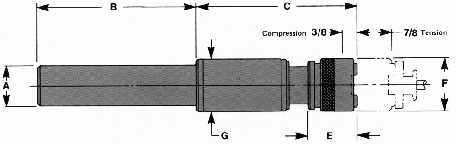

Universal Engineering (TSD) part numbers, dimensions and specifications
Tap Range |
Adapt
Size |
Universal Part No. |
A |
B |
C |
E |
F |
G |
0 - 9/16 hand, 1/8 pipe |
Size 1 |
151000 |
0.75 |
3.62 |
3.62 |
1.12 |
1.25 |
1.25 |
0 - 9/16 hand, 1/8 pipe |
Size 1 |
151002 |
1.00 |
3.62 |
3.62 |
1.12 |
1.25 |
1.25 |
0 - 9/16 hand, 1/8 pipe |
Size 1 |
151004 |
1.25 |
4.00 |
3.50 |
1.12 |
1.25 |
1.25 |
0 - 9/16 hand, 1/8 pipe |
Size 1 |
151006 |
1.50 |
4.00 |
3.50 |
1.12 |
1.25 |
1.25 |
5/16 - 7/8 hand, 1/4 - 1/2 pipe |
Size 2 |
151008 |
1.00 |
3.62 |
4.50 |
1.68 |
1.97 |
1.68 |
5/16 - 7/8 hand, 1/4 - 1/2 pipe |
Size 2 |
151010 |
1.25 |
4.00 |
4.50 |
1.68 |
1.97 |
1.68 |
5/16 - 7/8 hand, 1/4 - 1/2 pipe |
Size 2 |
151012 |
1.50 |
4.00 |
4.38 |
1.68 |
1.97 |
1.68 |
13/16 - 1-3/8 hand, 3/4 - 1 pipe |
Size 3 |
151016 |
1.25 |
4.00 |
5.68 |
2.50 |
2.83 |
2.75 |
13/16 - 1-3/8 hand, 3/4 - 1 pipe |
Size 3 |
151019 |
1.50 |
4.00 |
5.68 |
2.50 |
2.83 |
2.75 |
|
Lyndex-Nikken Straight Shank
|

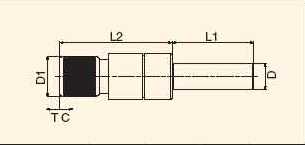

Lyndex part numbers, dimensions and specifications
Tap Range |
Adapt
Size |
Lyndex Part No. |
D |
D1 |
L1 |
L2 |
T |
C |
0 - 9/16 hand, 1/8 pipe |
Size 1 |
S1005-0562 |
1" |
1.25" |
3.50" |
4.13" |
0.79" |
0.39" |
5/16 - 7/8 hand, 1/4 - 1/2 pipe |
Size 2 |
S1005-0875 |
1" |
2.00 |
3.50" |
5.55" |
0.85" |
0.49" |
0 - 9/16 hand, 1/8 pipe |
Size 1 |
S1205-0562 |
1.25" |
1.25" |
3.5" |
4.13" |
0.79" |
0.39" |
5/16 - 7/8 hand, 1/4 - 1/2 pipe |
Size 2 |
S1205-0875 |
1.25" |
2.00" |
4.00" |
5.55" |
0.85" |
0.49" |
|
Lyndex-Nikken Weldon Shank
|
|
|
Tap Range |
Adapt
Size |
Lyndex Part No. |
D |
D1 |
L1 |
L2 |
T |
C |
0 - 9/16 hand, 1/8 pipe |
Size 1 |
W7505-0562 |
3/4" |
1.25" |
2.03" |
4.13" |
0.79" |
0.39" |
0 - 9/16 hand, 1/8 pipe |
Size 1 |
W1005-0562 |
1" |
1.25" |
2.28" |
4.13" |
0.79" |
0.39" |
0 - 9/16 hand, 1/8 pipe |
Size 1 |
W1055-0562 |
1" |
1.43" |
2.28" |
1.53" |
0.29" |
0.29" |
5/16 - 7/8 hand, 1/4 - 1/2 pipe |
Size 2 |
W1005-0875 |
1" |
2.00 |
2.28" |
5.55" |
0.85" |
0.49" |
5/16 - 7/8 hand, 1/4 - 1/2 pipe |
Size 2 |
W1055-0875 |
1" |
2.09 |
2.28" |
2.48" |
0.49" |
0.49" |
0 - 9/16 hand, 1/8 pipe |
Size 1 |
W1205-0562 |
1-1/4" |
1.25" |
2.28" |
4.13" |
0.79" |
0.39" |
5/16 - 7/8 hand, 1/4 - 1/2 pipe |
Size 2 |
W1205-0875 |
1-1/4" |
2.00" |
2.28" |
5.55" |
0.85" |
0.49" |
0 - 9/16 hand, 1/8 pipe |
Size 1 |
W1505-0562 |
1-1/2" |
1.25" |
2.69" |
4.13" |
0.79" |
0.39" |
5/16 - 7/8 hand, 1/4 - 1/2 pipe |
Size 2 |
W1505-0875 |
1-1/2" |
2.00" |
2.69" |
5.55" |
0.85" |
0.49" |
13/16 - 1-3/8 hand, 1/2 - 1" pipe |
Size 3 |
W1505-1375 |
1-1/2" |
2.87" |
2.69" |
7.81" |
0.98" |
0.59" |
13/16 - 1-3/8 hand, 1/2 - 1" pipe |
Size 3 |
W1555-1375 |
1-1/2" |
3.07" |
2.69" |
3.86" |
0.79" |
0.79" |
0 - 9/16 hand, 1/8 pipe |
Size 1 |
W25M5-0562 |
25mm |
36mm |
57mm |
39mm |
7.5mm |
7.5mm |
5/16 - 7/8 hand, 1/4 - 1/2 pipe |
Size 2 |
W25M5-0875 |
25mm |
53mm |
57mm |
63mm |
12.5mm |
12.5mm |
