Quick Change spindle nose assembly
Scully-Jones

Features:

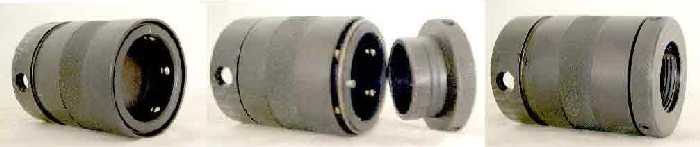

This unit mounts on your adjustable adapter spindle and accepts an Acme Shank Quick Change adapter nut.
The Quick Change adapter nut replaces the Acme shank adjustment nut on your tool.
This allows the tool to be "popped" into the Quick Change Spindle Nose assembly.
When you lift up on the outer collar of the QC nose assembly it locks open, releasing the tool
and extending a small pin on the face. Simple insertion of another Acme Shank tool (with adapter nut)
into the spindle depresses the pin and the nose assembly securely grabs the tool.
Super fast tool changes are the result.

Notes:

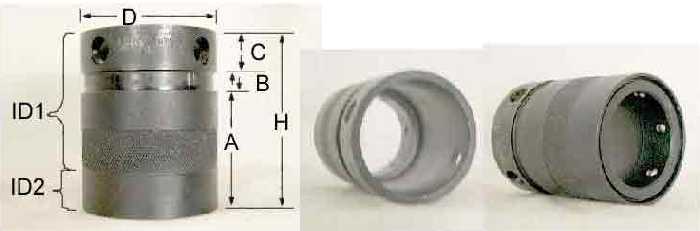

These measurements were taken with a dial caliper on actual units I have in stock.

Related Links:
Acme shank Quick Change adapter

Note: The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
