Acme Shank Quick Change adapter nut
Scully-Jones
|
Features:
 Acme threads conform to automotive standard ANSI/ASME B5.11 (1987).

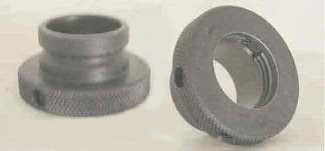

This adapter replaces the Acme shank adjustment nut and allows the tool to be
 "popped" into the
Quick Change Spindle Nose assembly.
The adapter nut provides the positive positioning desired in the spindle.
The gripping action of the nut set screw does not damage the adapter threads.

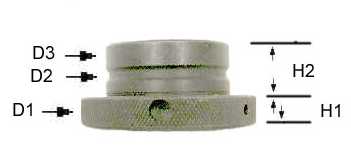

Scully-Jones part numbers and dimensions
Part
Number |
Acme
Thread |
D1 |
D2 |
D3 |
H1 |
H2 |
Price and
Availability |
Compatible
Nose Assy. |
19755 |
1 1/16-12 |
1.925 |
1.135 |
1.287 |
0.38 |
0.67 |
Click |
? |
19765 |
1 3/8-12 |
2.375 |
1.557 |
1.637 |
0.4 |
0.68 |
Click |
19470 |
Notes:
These measurements were taken with a dial caliper on actual units I have in stock.
Related Links:
QC Spindle Nose Assembly specs
Acme Shank specs
Note:
The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
|
