Quick-Change Tension & Compression Tap Chucks

Morse Taper Shank

 Made in USA

Features:
14pt Dot Accepts Bilz, Collis, Universal, Lyndex and many other tap adapters. Compatible Tap Adapters.

Check Price & Availability


Universal Engineering - Short Style

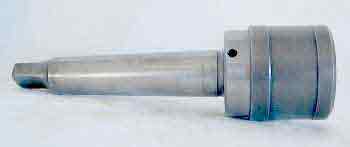

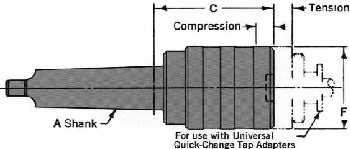

Short Style QC MT Shank T&C Tap Chuck drawing Short Style QC MT Shank T&C Tap Chuck picture
Universal Engineering (TSD) part numbers, dimensions and specifications

Tap Range

Adapt.
Size

Morse
Taper

Universal
Part No.

C

F

Tension

Compress

0 - 9/16 hand, 1/8 pipe

Size 1

MT 2

169050
16086 (old #)

2.06

1.42

0.23

0.23

5/16 - 7/8 hand, 1/4 - 1/2 pipe

Size 2

MT 3

169045
16235 (old #)

3.55

2.16

0.44

0.44

13/16 - 1-3/8 hand, 3/4 - 1 pipe

Size 3

MT 4

168882
16240 (old #)

4.97

3.08

0.67

0.67



Universal Engineering - Standard length

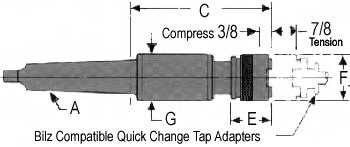

Standard length QC MT Shank T&C Tap Chuck drawing Standard length QC MT Shank T&C Tap Chuck picture
Universal Engineering (TSD) part numbers, dimensions and specifications

Tap Range

Adapt.
Size

Morse
Taper

Universal
Part No.

C

E

F

G

0 - 9/16 hand, 1/8 pipe

Size 1

MT 2

162072

4.22

1.12

1.25

1.25

5/16 - 7/8 hand, 1/4 - 1/2 pipe

Size 2

MT 3

162026

4.62

1.68

1.97

1.68

13/16 - 1-3/8 hand, 3/4 - 1 pipe

Size 3

MT 4

162066

5.94

2.5

2.83

2.75

Related Links:
14pt Dot Morse Taper Shank specs.
14pt Dot Compatible Tap Adapters.
14pt Dot Overview of Quick-Change Tapping Systems
14pt Dot All Bilz type Quick-Change Tap Chucks we have for sale

Note: The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
