Quick-Change (Bilz Type) Releasing Tap Chuck
Tension and Compression Compensated
|
Straight shank with both Weldon
and Whistle-Notch Flats.
|
|
|
for Through-Hole and Controlled-Depth Tapping on Machine Centers or Lathes
|
Features:
 Accurate controlled-depth tapping within 1/10th of a revolution.
Release not employed when through-hole tapping.
Tension/Compression and adjustable hard start.
Accepts Bilz, Collis, Universal, Lyndex and many other tap adapters.
Compatible Tap Adapters.

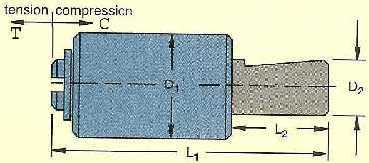

Kennametal catalog dimensions and specifications
Series |
Kennametal
Catalog # |
Tapmatic
Catalog # |
Adapt
size |
S* |
T |
C |
D1 |
D2 |
L1 |
L2 |
Price and
Availability |
NC0 |
SS075SR0235 |
34000 |
0 |
0.20 |
0.20 |
0.33 |
1.510 |
0.75 |
4.00 |
1.65 |
Click |
NC1 |
SS100SR1335 |
34010 |
1 |
0.20 |
0.25 |
0.58 |
2.03 |
1.00 |
5.60 |
2.25 |
Click |
NC2S |
SS100SR2350 |
34020S |
2 |
0.25 |
0.375 |
0.42 |
2.75 |
1.00 |
6.00 |
2.50 |
Click |
* S= stroke to disengage
Note:
These units are made by Tapmatic for Kennametal. For additional information on them see:
Tapmatic catalog info.
Related Links:
Weldon Shank
Whistle Notch Shank
Compatible Tap Adapters.
Overview of Quick-Change Tapping Systems
All Bilz type Quick-Change Tap Chucks we have for sale
Note:
The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
|
