FITH Quick-Change Floating Tap & Reamer Holder
|
Acme or Trapezoidal (Metric) Shank
|
|
Note: Acme threaded shanks are also referred to as Adjustable Adapter and Automotive
Shank. Mount these in your Adjustable Adapter holder or any straight shank tool holder
(collet or end mill holders work great). You can also turn the shank down to fit smaller
straight shank holders.
Acme Shank specifications
|
|
Features:
 Differential Drive Floating System for Smooth True Float.
Thru Coolant Design with Back Pressure Flow Control System.
Adjustable Centering Mechanism, allows the customer to customize
 the amount of pressure required to move the tool off center.
Front Side Chip Shield.
Accepts Bilz, Collis, Universal, Lyndex, Smith and many other tap adapters.
Compatible Tap Adapters.

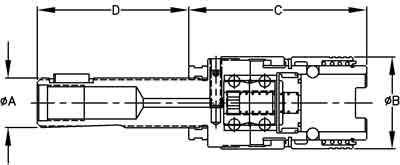

T.M. Smith Tool (TMS) part numbers, dimensions and specifications
Smith Tool
Part No. |
Adapt
Size |
Tap Range
(Hand Tap) |
A Shank |
B Dia. |
C |
D |
Float |
Coolent
Inducer |
Price and
Availability |
220-210 |
Size 0 |
0 to 1/4" |
5/8 - 16 |
0.92 |
2.29 |
2.59 |
0.06 |
331-4013-SA11 |
~ |
220-212 |
Size 0 |
0 to 1/4" |
3/4 - 12 |
0.92 |
2.29 |
2.59 |
0.06 |
331-4014-20 |
~ |
220-TR16 |
Size 0 |
0 to 1/4" |
TR16 x 1.5mm |
0.92 |
2.29 |
2.94 |
0.06 |
Custom |
~ |
220-TR20 |
Size 0 |
0 to 1/4" |
TR20 x 2.0mm |
0.92 |
2.29 |
3.06 |
0.06 |
Custom |
Click |
221-210 |
Size 1 |
0 to 9/16" |
5/8 - 16 |
1.26 |
2.70 |
2.59 |
0.06 |
331-4013-SA11 |
Click |
221-212 |
Size 1 |
0 to 9/16" |
3/4 - 12 |
1.26 |
2.70 |
2.59 |
0.06 |
331-4014-20 |
Click |
221-214 |
Size 1 |
0 to 9/16" |
7/8 - 12 |
1.26 |
2.70 |
3.22 |
0.06 |
331-4016-20 |
Click |
221-217 |
Size 1 |
0 to 9/16" |
1-1/16 - 12 |
1.26 |
2.70 |
3.22 |
0.06 |
331-4016-18 |
Click |
221-TR20 |
Size 1 |
0 to 9/16" |
TR20 x 2.0mm |
1.26 |
2.70 |
3.06 |
0.06 |
Custom |
~ |
221-TR28 |
Size 1 |
0 to 9/16" |
TR28 x 2.0mm |
1.26 |
2.70 |
3.21 |
0.06 |
Custom |
Click |
222-217 |
Size 2 |
5/16" to 7/8" |
1-1/16 - 12 |
1.96 |
3.78 |
3.22 |
0.06 |
332-4016-18 |
~ |
222-222 |
Size 2 |
5/16" to 7/8" |
1-3/8 - 12 |
1.96 |
3.78 |
4.22 |
0.06 |
332-4020-18 |
Click
|
222-TR28 |
Size 2 |
5/16" to 7/8" |
TR28 x 2.0mm |
1.96 |
3.78 |
3.21 |
0.06 |
Custom |
~ |
222-TR36 |
Size 2 |
5/16" to 7/8" |
TR36 x 2.0mm |
1.96 |
3.78 |
4.24 |
0.06 |
Custom |
~ |
223-222 |
Size 3 |
3/4" to 1-3/8" |
1-3/8 x 12 |
2.83 |
5.35 |
4.22 |
0.09 |
332-4020-18 |
~ |
223-230 |
Size 3 |
3/4" to 1-3/8" |
1-7/8 x 12 |
2.83 |
5.35 |
5.22 |
0.09 |
332-4020-18 |
~ |
223-TR36 |
Size 3 |
3/4" to 1-3/8" |
TR36 x 2.0mm |
2.83 |
5.35 |
4.24 |
0.09 |
Custom |
~ |
Related Links:
Acme Shank specs
Compatible Tap Adapters.
Overview of Quick-Change Tapping Systems
All Bilz type Quick-Change Tap Chucks we have for sale
Note:
The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
|
