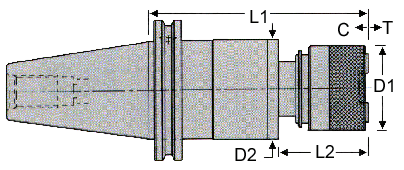

Quick-Change Tension & Compression Tap Chucks

CAT, CV, V-flange shank (ANSI B5.50)

Tap Range

Adapt
Size

CAT
Shank

Universal
Part No.

L1

L2

D1

D2

T
Tension

C
Compress

Price and
Availability

0 to 9/16"
1/8" Pipe

1

30

165076

2.88

1.5

1.42

1.26

0.23

0.23

~

0 to 9/16"
1/8" Pipe

1

40

163884

4.88

1.50

1.25

1.25

0.88

0.38

Click

0 to 9/16"
1/8" Pipe

1

45

163759

4.25

1.5

1.25

1.88

0.88

0.38

~

0 to 9/16"
1/8" Pipe

1

50

163844

4.00

1.5

1.25

1.88

0.88

0.38

Click

5/16 to 7/8"
1/4 to 1/2" Pipe

2

40

163885

5.62

2.06

1.97

1.69

0.88

0.38

Click

5/16 to 7/8"
1/4 to 1/2" Pipe

2

45

163760

5.00

2.06

1.97

2.31

0.88

0.38

~

5/16 to 7/8"
1/4 to 1/2" Pipe

2

50

163845

4.75

2.06

1.97

2.31

0.88

0.38

Click

13/16 to 1-3/8" Hand
3/4 to 1" Pipe

3

45

163761

7.12

2.88

2.83

2.75

0.88

0.38

~

13/16 to 1-3/8" Hand
3/4 to 1" Pipe

3

50

163846

6.19

2.88

2.83

2.75

0.88

0.38

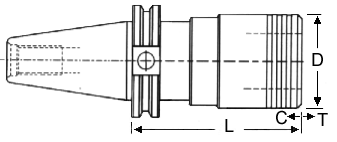

Click

Tap Range

Adapt
Size

CAT
Shank

Universal
Part No.

Bilz ID

D

L

T
Tension

C
Compress

Price and
Availability

0 to 9/16"
1/8" Pipe

1

40

12018091

WFLK 115 B

1.417

2.972

0.30

0.30

~

0 to 9/16"
1/8" Pipe

1

45

12018092

WFLK 115 B

1.417

2.972

0.30

0.30

~

5/16 to 7/8"
1/4 to 1/2" Pipe

2

40

12028143

WFLK 225 B

2.087

3.937

0.49

0.49

~

5/16 to 7/8"
1/4 to 1/2" Pipe

2

45

12028144

WFLK 225 B

2.087

3.937

0.49

0.49

~

5/16 to 7/8"
1/4 to 1/2" Pipe

2

50

12028145

WFLK 225 B

2.087

3.937

0.49

0.49

~

13/16 to 1-3/8" Hand
3/4 to 1" Pipe

3

40

12038105

WFLK 340 B

3.071

5.787

0.79

0.79

~

13/16 to 1-3/8" Hand
3/4 to 1" Pipe

3

45

12038106

WFLK 340 B

3.071

5.787

0.79

0.79

~

13/16 to 1-3/8" Hand
3/4 to 1" Pipe

3

50

12038107

WFLK 340 B

3.071

5.787

0.79

0.79

~

7/8 to 2-1/4" Hand
3/4 to 2" Pipe

4

45

12048086

WFLK 445 B

3.78

6.299

0.89

0.89

~

7/8 to 2-1/4" Hand
3/4 to 2" Pipe

4

50

12048087

WFLK 445 B

3.78

6.299

0.89

0.89

~
