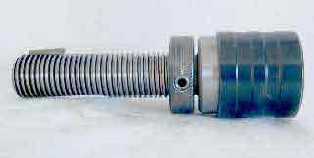

Quick-Change Tap Chucks
Tension & Compression Compensated
|
Acme Shank
|
|
Check Price & Availability
Features:
Accepts Bilz, Collis, Universal, Lyndex and many other tap adapters.
Compatible Tap Adapters.
These have no radial float.
They do have limited spring compensated linear freedom of motion.
|

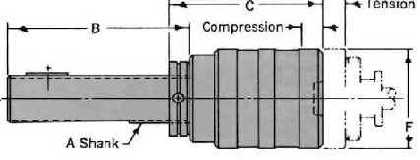

Universal Engineering - Short Style
|
Universal Engineering (TSD) part numbers, dimensions and specifications
Tap Range |
Size |
Acme
Shank |
Universal
Part No. |
B |
C |
F |
Tension |
Compress |
0 to 1/4" |
0 |
1/2-16 |
16213 |
3.00 |
1.83 |
1.06 |
0.23 |
0.23 |
0 to 1/4" |
0 |
5/8-16 |
16214 |
3.00 |
1.83 |
1.06 |
0.23 |
0.23 |
0 to 1/4" |
0 |
3/4-12 |
16215 |
3.00 |
1.83 |
1.06 |
0.23 |
0.23 |
0 to 9/16", 1/8" Pipe |
1 |
3/4-12 |
16223 |
3.00 |
1.95 |
1.42 |
0.23 |
0.23 |
0 to 9/16", 1/8" Pipe |
1 |
7/8-12 |
16224 |
3.62 |
1.95 |
1.42 |
0.23 |
0.23 |
0 to 9/16", 1/8" Pipe |
1 |
1 1/16-12 |
16226 |
3.62 |
1.95 |
1.42 |
0.23 |
0.23 |
0 to 9/16", 1/8" Pipe |
1 |
1 3/8-12 |
16227 |
4.62 |
1.95 |
1.42 |
0.23 |
0.23 |
0 to 9/16", 1/8" Pipe |
1 |
1 7/8-12 |
16228 |
5.62 |
2.08 |
1.42 |
0.23 |
0.23 |
5/16 to 7/8", 1/4 to 1/2" Pipe |
2 |
1 1/16-12 |
16233 |
3.62 |
3.16 |
2.16 |
0.44 |
0.44 |
5/16 to 7/8", 1/4 to 1/2" Pipe |
2 |
1 3/8-12 |
16234 |
4.62 |
3.16 |
2.16 |
0.44 |
0.44 |
5/16 to 7/8", 1/4 to 1/2" Pipe |
2 |
1 7/8-12 |
16597 |
5.62 |
3.25 |
2.16 |
0.44 |
0.44 |
13/16 to 1-3/8" Hand, 3/4 to 1" Pipe |
3 |
1 3/8-12 |
16238 |
4.62 |
4.48 |
3.08 |
0.67 |
0.67 |
13/16 to 1-3/8" Hand, 3/4 to 1" Pipe |
3 |
1 7/8-12 |
16239 |
5.62 |
4.48 |
3.08 |
0.67 |
0.67 |
|

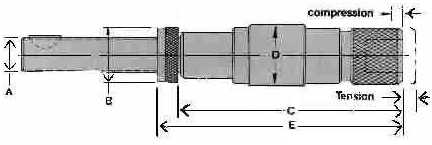

Universal Engineering - Standard length
|
Universal Engineering (TSD) part numbers, dimensions and specifications
Tap Range |
Adapt.
Size |
Acme
Shank |
Universal
Part No. |
B |
C |
D |
E |
Tension |
Compress |
0 - 9/16 hand, 1/8 pipe |
Size 1 |
3/4-12 |
151271 |
1.25 |
4.98 |
1.38 |
5.48 |
0.79 |
0.79 |
0 - 9/16 hand, 1/8 pipe |
Size 1 |
1"-12 |
151235 |
1.49 |
3.63 |
1.25 |
4.00 |
7/8" |
3/8" |
0 - 9/16 hand, 1/8 pipe |
Size 1 |
1 1/16-12 |
151272 |
1.56 |
4.98 |
1.38 |
5.48 |
0.79 |
0.79 |
5/16 - 7/8 hand, 1/4 - 1/2 pipe |
Size 2 |
1 1/16-12 |
151009 |
1.56 |
4.50 |
1.69 |
4.87 |
7/8" |
3/8" |
5/16 - 7/8 hand, 1/4 - 1/2 pipe |
Size 2 |
1 1/16-12 |
151273 |
1.56 |
5.93 |
1.97 |
6.43 |
0.79 |
0.79 |
5/16 - 7/8 hand, 1/4 - 1/2 pipe |
Size 2 |
1 3/8-12 |
151274 |
1.88 |
5.93 |
1.97 |
6.43 |
0.79 |
0.79 |
Note:
The amount of tension and compression is modifiable on the above chucks. The amount of T&C travel is determined
by the length of 2 spacers (sections of tubing) working in concert with 2 springs on a central screw shaft. The screw head
is in the butt of the shank. Slide the body cover forward to access the 2nd spacer (be ready to catch dropping parts).
By interchanging the position of the 2 spacers you interchange the amount of T&C.
Any ratio of T&C (max total of 1.25") can be created with custom length spacers.
For a rigid chuck (with no T or C) instalI the corret length spacers.
By replacing the springs you can adjust the force of the compensation.
|

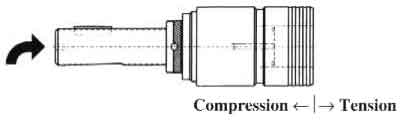

Universal Engineering - Short Style with Coolant Thru
|
Universal Engineering (TSD) part numbers, dimensions and specifications
Tap Range |
Adapt.
Size |
Acme
Shank |
Universal
Part No. |
Description |
0 - 9/16 hand, 1/8 pipe |
Size 1 |
3/4-12 |
38018073 |
WFLC 115 IKP |
0 - 9/16 hand, 1/8 pipe |
Size 1 |
1 1/16-12 |
38018074 |
WFLC 115 IKP |
5/16 - 7/8 hand, 1/4 - 1/2 pipe |
Size 2 |
1 1/16-12 |
38028025 |
WFLC 220 IKP |
5/16 - 7/8 hand, 1/4 - 1/2 pipe |
Size 2 |
1 3/8-12 |
38028026 |
WFLC 220 IKP |
13/16 - 1-3/8 hand, 3/4 - 1 pipe |
Size 3 |
1 1/16-12 |
38038037 |
WFLC 335 IKP |
13/16 - 1-3/8 hand, 3/4 - 1 pipe |
Size 3 |
1 3/8-12 |
38038038 |
WFLC 335 IKP |
7/8 to 2-1/4", 3/4 to 2" Pipe |
Size 4 |
1 3/8-12 |
38048009 |
WFLC 440 IKP |
7/8 to 2-1/4", 3/4 to 2" Pipe |
Size 4 |
1 7/8-12 |
38048010 |
WFLC 440 IKP |
Related Links:
Acme Shank specs
Compatible Tap Adapters.
Overview of Quick-Change Tapping Systems
All Bilz type Quick-Change Tap Chucks we have for sale
Note:
The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
|
|
