TSD Max-Float Quick Change Tap Chucks

Acme Threaded Shank

 Made in USA
Note: Acme threaded shanks are also referred to as Adjustable Adapter and
Automotive Shank. Mount these in your Adjustable Adapter holder or any straight shank
tool holder (collet or end mill holders work great). You can also turn the shank down to
fit smaller straight shank holders. Acme Shank specifications

Features:
14pt Dot Total radial float size 0 through size 2 is 0.062", size 3 is 0.094".
14pt Dot Combines benefits of Max-Float and quick change (Bilz Type) tap adapters.
14pt Dot Accepts Bilz, Collis, Universal, Lyndex, Smith and many other tap adapters. Compatible Tap Adapters.

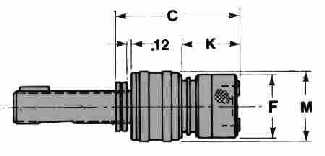

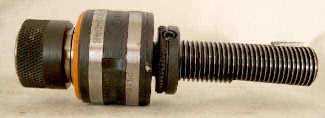

TSD Universal Max-Float Quick Change Tap Chuck drawing TSD Universal Max-Float Quick Change Tap Holder # 241580
Universal Engineering (TSD) part numbers, dimensions and specifications

Universal
Part No.

Adapt
Size

Tap Range
(Hand Tap)

Shank

Model

C

F

K

M

Price and
Availability

241500

Size 0

0 to 1/4"

1/2-16

106

2.61

0.91

1.04

1.06

~

241501

Size 0

0 to 1/4"

5/8-16

106

2.61

0.91

1.04

1.06

~

241502

Size 0

0 to 1/4"

3/4-12

106

2.61

0.91

1.04

1.06

~

241503

Size 0

0 to 1/4"

7/8-12

106

2.61

0.91

1.04

1.06

~

241580

Size 1

0 to 9/16"

3/4 - 12

169

2.81

1.25

1.03

1.69

Click

241581

Size 1

0 to 9/16"

7/8 - 12

169

2.81

1.25

1.03

1.69

~

241583

Size 1

0 to 9/16"

1-1/16 - 12

169

2.81

1.25

1.03

1.69

~

241584

Size 1

0 to 9/16"

1-3/8 - 12

169

2.81

1.25

1.03

1.69

~

241707

Size 2

5/16" to 7/8"

1-1/16 - 12

219

3.83

1.97

1.77

2.19

~

241708

Size 2

5/16" to 7/8"

1-3/8 - 12

219

3.83

1.97

1.77

2.19

~

241709

Size 2

5/16" to 7/8"

1-7/8 - 12

219

3.95

1.97

1.77

2.19

~

241912

Size 3

1-3/16 - 1-3/8

1-3/8 - 12

344

4.88

2.83

2.50

3.44

~

241913

Size 3

1-3/16 - 1-3/8

1-7/8 - 12

344

5.00

2.83

2.50

3.44

~

Related Links:
14pt Dot Acme Shank specs
14pt Dot Compatible Tap Adapters.
14pt Dot Overview of Quick-Change Tapping Systems
14pt Dot All Bilz type Quick-Change Tap Chucks we have for sale

Note: The specifications and information provided on this page are intended for part identification purposes only.
