Quick-Change Tap Adapter Holder
ACTH Adjustable Tension and Compression
|
Acme or Trapezoidal (Metric) Shank
|
|
Features:
Adjustable Mechanism, allows the customer to customize the amount of tension/compression stroke.
Optional rust resistant chrome finish, add "ST" to the part number.
Accepts Bilz, Collis, Universal, Lyndex and many other tap adapters.
Compatible Tap Adapters.

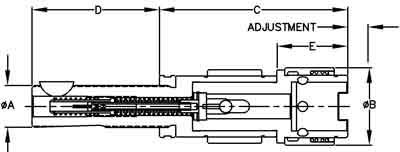

Smith Tool (TMS) part numbers, dimensions and specifications
Smith Tool
Part No. |
Adapt
Size |
Tap Range |
A Shank |
B Dia. |
C |
D |
E |
Adjust |
311-51-217 |
Size 1 |
0 to 9/16" Hand |
1-1/16 - 12 |
1.26 |
3.21 |
3.22 |
1.17 |
0.50 |
|
311-51-222 |
Size 1 |
0 to 9/16" Hand |
1-3/8 - 12 |
1.26 |
3.21 |
4.22 |
1.17 |
0.50 |
311-51-TR28 |
Size 1 |
0 to 9/16" Hand |
TR28 x 2.0mm |
1.26 |
3.21 |
3.21 |
1.17 |
0.50 |
312-52-217 |
Size 2 |
5/16" to 7/8" Hand |
1-1/16 - 12 |
1.96 |
4.75 |
3.22 |
1.79 |
0.88 |
312-52-222 |
Size 2 |
5/16" to 7/8" Hand |
1-3/8 - 12 |
1.96 |
4.75 |
4.22 |
1.79 |
0.88 |
312-52-TR28 |
Size 2 |
5/16" to 7/8" Hand |
TR28 x 2.0mm |
1.96 |
4.75 |
3.21 |
1.79 |
0.88 |
312-52-TR36 |
Size 2 |
5/16" to 7/8" Hand |
TR36 x 2.0mm |
1.96 |
4.75 |
4.24 |
1.79 |
0.88 |
313-53-222 |
Size 3 |
3/4" to 1-3/8" Hand |
1-3/8 - 12 |
2.91 |
7.00 |
4.22 |
2.94 |
1.38 |
313-53-TR36 |
Size 3 |
3/4" to 1-3/8" Hand |
TR36 x 2.0mm |
2.91 |
7.00 |
4.24 |
2.94 |
1.38 |
Related Links:
Acme Shank specs
Compatible Tap Adapters.
Overview of Quick-Change Tapping Systems
All Bilz type Quick-Change Tap Chucks we have for sale
Note:
The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
|
