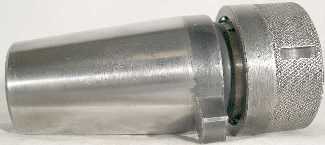

Kwik-Switch Reducing Master Holders
|
Features:
Kwik-Switch II units have an automatic locking nut.
Kwik-Switch I units have a manual locking nut.
Accepts all Kwik-Switch shanks (Universal, Collis, Smith Tool, SPI, Scully-Jones and others).
Note! Automatic and manual nuts are not interchangeable.
e.g. You can not put a 805043 KS200 automatic nut on a 80359 KS300-KS200 reducer and you can not put a
80202 KS200 manual nut on a 804493 KS300-KS200 reducer. The threads on the 2 adapters are completely different.
Outside
Kwik-Switch |
Inside
Kwik-Switch |
Universal
Part No. |
C |
D |
Nut
Part No. |
Wrench
Part No. |
Price and
Availability |
200 |
100 |
80258 |
1.156 |
2 |
80102* |
80103 |
~ |
300 |
100 |
80358 |
1.031 |
2 |
80102* |
80103 |
~ |
300 |
200 |
80359 |
1.344 |
2.563 |
80202* |
80203 |
~ |
300 |
200 |
804493 |
1.75 |
2.56 |
805043** |
80203 |
~ |
400 |
100 |
80458 |
1.125 |
2 |
80102* |
80103 |
~ |
400 |
200 |
80459 |
1.344 |
2.563 |
80202* |
80203 |
~ |
400 |
200 |
804534 |
1.47 |
2.56 |
805043** |
80203 |
Click |
400 |
300 |
80460 |
1.813 |
3 |
80302* |
80303 |
~ |
400 |
300 |
804536 |
1.81 |
3.00 |
805044** |
80303 |
Click |
 * Manual Nut ** Automatic Nut
Related Links:
Kwik-Switch Shank specs
Wrench (Spanner) specs
Note:
The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
|
