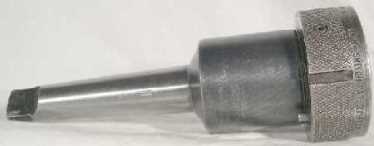

Kwik-Switch Master Holder
with Morse Taper Shank
|
Features:
 Kwik-Switch II units have an automatic locking nut.
Kwik-Switch I units have a manual locking nut.
Accepts all Kwik-Switch shanks (Universal, Collis, Smith Tool, SPI, Scully-Jones and others).
Note! Automatic and manual nuts are not interchangeable.
 The threads on the 2 adapters are completely different.
Check Price and Availability
Universal Engineering (TSD) part numbers, dimensions and specifications
Kwik
Switch |
Shank
MT # |
Universal
Part No. |
A |
B |
C |
D |
Nut
Part No. |
Wrench
Part No. |
100 |
2 |
80124 |
0.700 |
2.94 |
2.03 |
2.00 |
805063 (A) |
80103 |
100 |
2 |
80109 |
0.700 |
2.94 |
2.03 |
2.00 |
80102 (M) |
80103 |
100 |
3 |
80128 |
0.938 |
3.68 |
2.00 |
2.00 |
805063 (A) |
80103 |
100 |
3 |
80110 |
0.938 |
3.68 |
2.00 |
2.00 |
80102 (M) |
80103 |
100 |
4 |
80111 |
1.231 |
4.625 |
1.313 |
2.00 |
80102 (M) |
80103 |
200 |
3 |
80250 |
0.938 |
3.68 |
3.38 |
2.56 |
805043 (A) |
80203 |
200 |
3 |
80208 |
0.938 |
3.68 |
3.38 |
2.56 |
80202 (M) |
80203 |
200 |
4 |
80257 |
1.231 |
4.62 |
3.28 |
2.56 |
805043 (A) |
80203 |
200 |
4 |
80209 |
1.231 |
4.62 |
3.28 |
2.56 |
80202 (M) |
80203 |
200 |
5 |
80210 |
1.748 |
5.875 |
1.594 |
2.56 |
80202 (M) |
80203 |
300 |
4 (LD) |
804454 |
1.231 |
4.62 |
3.78 |
3.00 |
805044 (A) |
80303 |
300 |
4 |
80309 |
1.231 |
4.62 |
3.78 |
3.00 |
80302 (M) |
80303 |
300 |
5 |
804456 |
1.748 |
5.88 |
2.72 |
3.00 |
805044 (A) |
80303 |
300 |
5 (K) |
805878 |
1.748 |
5.88 |
2.72 |
3.00 |
805044 (A) |
80303 |
300 |
5 |
80310 |
1.748 |
5.88 |
2.72 |
3.00 |
80302 (M) |
80303 |
300 |
6 |
804458 |
2.494 |
8.25 |
1.61 |
3.00 |
805044 (A) |
80303 |
300 |
6 (K) |
805880 |
2.494 |
8.25 |
1.61 |
3.00 |
805044 (A) |
80303 |
300 |
6 |
80311 |
2.494 |
8.25 |
1.61 |
3.00 |
80302 (M) |
80303 |
400 |
4 (LD) |
804497 |
1.231 |
4.62 |
4.78 |
3.75 |
805045 (A) |
80403 |
400 |
4 (LD) |
80408 |
1.231 |
4.62 |
4.78 |
3.75 |
80402 (M) |
80403 |
400 |
5 (LD) |
804499 |
1.748 |
5.88 |
4.78 |
3.75 |
805045 (A) |
80403 |
400 |
5 (LD) (K) |
805879 |
1.748 |
5.88 |
4.78 |
3.75 |
805045 (A) |
80403 |
400 |
5 (LD) |
80409 |
1.748 |
5.88 |
4.78 |
3.75 |
80402 (M) |
80403 |
400 |
6 |
804501 |
2.494 |
8.25 |
3.47 |
3.75 |
805045 (A) |
80403 |
400 |
6 (K) |
805881 |
2.494 |
8.25 |
3.47 |
3.75 |
805045 (A) |
80403 |
400 |
6 |
80410 |
2.494 |
8.25 |
3.47 |
3.75 |
80402 (M) |
80403 |
400 |
7 |
804503 |
3.270 |
11.25 |
2.28 |
3.75 |
805045 (A) |
80403 |
400 |
7 (K) |
805882 |
3.270 |
11.25 |
2.28 |
3.75 |
805045 (A) |
80403 |
400 |
7 |
80411 |
3.270 |
11.25 |
2.28 |
3.75 |
80402 (M) |
80403 |
(LD) Light Duty
(M) Manual Nut
(A) Automatic Nut
(K) with Keeper
