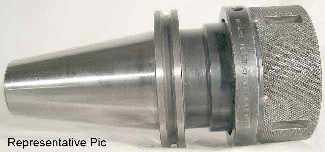

Kwik-Switch II Master Holder
with CAT (CV V-Flange) Shank

Features:
14pt Dot Kwik-Switch II automatic locking nut..
14pt Dot Accepts all Kwik-Switch shanks (Universal, Collis, Smith Tool, SPI, Scully-Jones and others).

Note! The CAT Machine shank is also know as: ANSI B5.50, CV, Caterpillar V-Flange,
15pt Space15pt Space15pt SpaceISO 7388-1, IS 11173 (TC), DIN69871

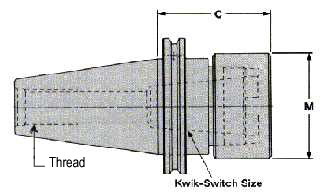

CAT to Kwik-Switch adapter drawing CAT 50 to Kwik-Switch 400 adapter
Universal Engineering (TSD) part numbers, dimensions and specifications

Kwik
Switch

CAT
Shank

Universal
Part No.

C

M

Thread

Nut
Part No.

Wrench
Part No.

Price and
Availability

200

40

805922

3.44

2.56

5/8-11

805043

80203

Click

300

50

806282

3.12

3.00

1-8

805044

80303

Click

400

50

806283

4.06

3.89

1-8

805045

80403

Click


Kwik-Switch Automactic Nut Operation

Related Links:
14pt DotKwik-Switch Shank specs
14pt DotCAT Shank specs
14pt DotWrench (Spanner) specs

Note: The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
