Kwik-Switch Boring Head

3 Hole 3/8" 3 Hole 1" "OY" 1/2" DT "OZ" 3/4" DT "OZZ" 1" DT Fixed

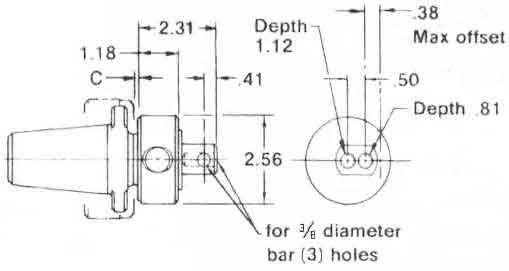

Kwik-Switch 3 Hole (3/8") Boring Chucks

Features:
14pt Dot Small compact design
Precision calibrated dial and feed screw.
Each graduation on dial equals .001 on bore dia.

Kwik Switch Size	Universal Assembly Part No.	Universal Shank Part No.	Universal Head Part No.	C	Price and Availability
200	97375	97101	97374	0.19	Click
300	97376	97102	97374	0.06	Click
400	97377	97103	97374	0.06	Click

[Back to Top of page]

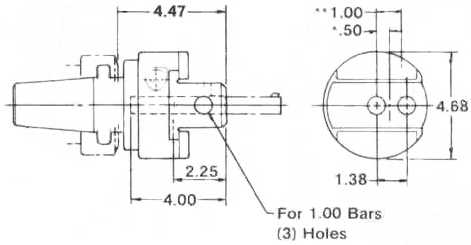

Kwik-Switch 3 Hole (1") Boring Chuck

Features:
14pt Dot Designed for both rough and finish boring operations.
Each graduation on dial equals .002 on bore dia.
Feed mechanism protected against dirt.

	* This is the maximum distance that the adjustable slide and boring bar can be offset when a boring bar is inserted from 2.25' to the maximum depth of 4.00".
	** This is the maximum distance that the adjustable slide and boring bar can be offset when a boring bar is inserted 2.25" or less.

Kwik Switch Size	Universal Assembly Part No.	Universal Shank Part No.	Universal Head Part No.	Price and Availability
300	95344	95341	95299	~
400	95346	95343	95299	Click

[Back to Top of page]

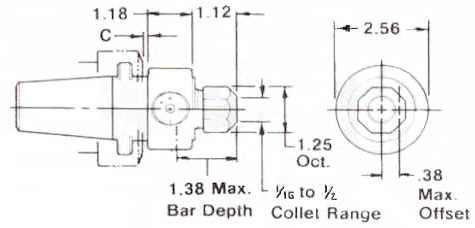

Kwik-Switch "OY" Boring Chuck

Features:
14pt Dot 3/16" to 1/2" DT collet range.
Designed for both rough and finish boring operations.
Positive, built-in center stop allows collet nose to be accurately returned for drilling
Feed mechanism protected against dirt.
Each graduation on dial equals .001 on bore dia.

Kwik Switch Size	Universal Assembly Part No.	Universal Shank Part No.	Universal Head Part No.	C	Price and Availability
200	97041	97101	97047	0.19"	Click
300	97043	97102	97047	0.06"	~
400	97045	97103	97047	0.06"	~

[Back to Top of page]

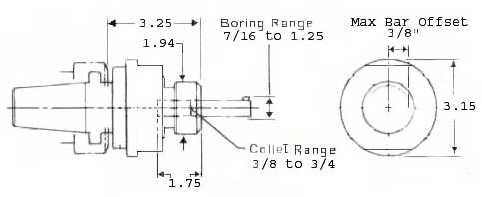

Kwik-Switch "OZ" Boring Chuck

Features:
14pt Dot 3/8" to 3/4" DT collet range.
Designed for both rough and finish boring operations.
Collet holds bar more securely than set screws.
Each graduation on dial equals 0.001" on bore dia..
Feed mechanism protected against dirt.

Kwik Switch Size	Universal Assembly Part No.	Universal Shank Part No.	Universal Head Part No.	Price and Availability
200	?	97101	97018	Click
300	?	97102	97018	~
400	?	97103	97018	~

[Back to Top of page]

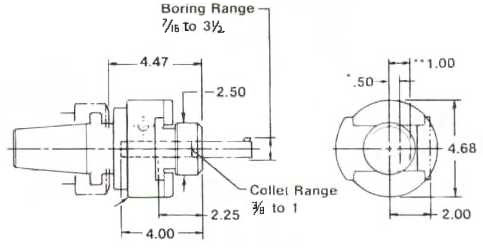

Kwik-Switch "OZZ" Boring Chuck

Features:
14pt Dot 3/8" to 1" DT collet range.
Designed for both rough and finish boring operations.
Collet holds bar more securely than set screws.
Each graduation on dial equals .002 on bore dia.
Feed mechanism protected against dirt.

	* This is the maximum distance that the adjustable slide and boring bar can be offset when a boring bar is inserted from 2.25' to the maximum depth of 4.00".
	** This is the maximum distance that the adjustable slide and boring bar can be offset when a boring bar is inserted 2.25" or less.

Kwik Switch Size	Universal Assembly Part No.	Universal Shank Part No.	Universal Head Part No.	Price and Availability
300	95340	95341	95298	Click
400	95342	95343	95298	Click

[Back to Top of page]

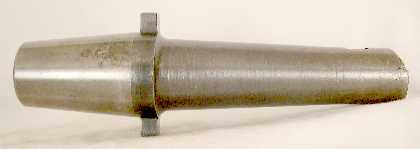

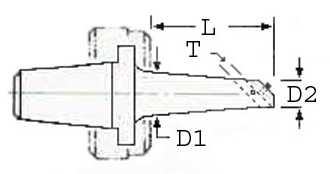

Kwik-Switch "Fixed Square Tool" Boring Head

Features:
14pt Dot Very rigid design
Uses standard square tooling (solid carbide, carbide tipped, insert, etc.)
2 set screws hold cutter securely in place

Kwik Switch	Universal Part No.	D1	D2	L	T Tool Size	Price and Availability
200	?	?	?	?	?	~
300	?	?	?	?	?	~
400	80472	1.36"	1"	4.9"	0.32"	Click
400	80475	1.875"	1.5"	6"	0.5"	Click
400	80479	2.375"	2"	9"	0.5"	Click

[Back to Top of page]

Note: The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
