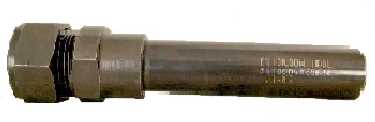

Double Angle Collet Chucks (style 08)
Recommended for Drilling
|
Features:
Uses standard DA (Double Angle) collets.
Heavy-duty construction.
Collets collaspe 1/32" and can grip both back taper and margins of tool shank.
Adjustable stop screw with through-coolant capability.
Chuck accuracy with collet is 0.002 TIR or better at 1" from nose (for 1/8" and larger collets).
Check Price & Availability

Kennametal
Catalog # |
C (inch)
Range |
C (mm)
Range |
Collet
Series |

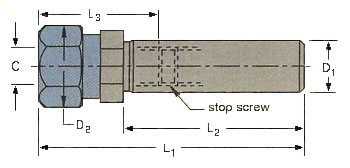

D1 |
D2 |
L1 |
L2 |
L3
min |
L3
max |
Nut
ft lbs |
Nut # |
SS050DA308516 |
1/64 - 1/4 |
0.5 - 6 |
300 |
0.50 |
0.79 |
5.16 |
4.00 |
1.50 |
4.25 |
20-25 |
1013468 |
SS062DA308516 |
1/64 - 1/4 |
0.5 - 6 |
300 |
0.62 |
0.79 |
5.16 |
4.00 |
1.50 |
4.25 |
20-25 |
1013468 |
SS062DA208569 |
1/64 - 3/8 |
0.5 - 10 |
200 |
0.62 |
1.15 |
5.69 |
4.00 |
1.62 |
4.25 |
32-40 |
1020382 |
SS075DA308516 |
1/64 - 1/4 |
0.5 - 6 |
300 |
0.75 |
0.79 |
5.16 |
4.25 |
1.50 |
4.25 |
20-25 |
1013468 |
SS075DA208531 |
1/64 - 3/8 |
0.5 - 10 |
200 |
0.75 |
1.15 |
5.31 |
4.00 |
1.62 |
4.12 |
32-40 |
1020382 |
SS075DA108588 |
1/32 - 9/16 |
1 - 14 |
100 |
0.75 |
1.42 |
5.88 |
4.00 |
1.81 |
5.31 |
40-50 |
1013467 |
SS100DA308516 |
1/64 - 1/4 |
0.5 - 6 |
300 |
1.00 |
0.79 |
5.16 |
4.00 |
1.50 |
4.25 |
20-25 |
1013468 |
SS100DA208531 |
1/64 - 3/8 |
0.5 - 10 |
200 |
1.00 |
1.15 |
5.31 |
4.00 |
1.69 |
4.12 |
32-40 |
1020382 |
SS100DA108556 |
1/32 - 9/16 |
1 - 14 |
100 |
1.00 |
1.42 |
5.56 |
4.00 |
1.94 |
4.88 |
40-50 |
1013467 |
SS100DA188638 |
1/32 - 3/4 |
1 - 20 |
180 |
1.00 |
1.73 |
6.38 |
4.00 |
1.94 |
5.62 |
60-75 |
1020417 |
SS125DA208531 |
1/64 - 3/8 |
0.5 - 10 |
200 |
1.25 |
1.15 |
5.31 |
4.00 |
1.62 |
4.12 |
32-40 |
1020382 |
SS125DA108556 |
1/32 - 9/16 |
1 - 14 |
100 |
1.25 |
1.42 |
5.56 |
4.31 |
1.94 |
4.88 |
40-50 |
1013467 |
SS125DA108756 |
1/32 - 9/16 |
1 - 14 |
100 |
1.25 |
1.42 |
7.56 |
6.31 |
1.94 |
5.62 |
40-50 |
1013467 |
SS125DA188762 |
1/32 - 3/4 |
1 - 20 |
180 |
1.25 |
1.73 |
7.62 |
6.00 |
1.94 |
6.62 |
60-75 |
1020417 |
SS125DA408862 |
1/16 - 1" |
2 - 25 |
400 |
1.25 |
2.50 |
8.62 |
6.00 |
2.12 |
7.68 |
80-100 |
1022305 |
SS150DA208531 |
1/64 - 3/8 |
0.5 - 10 |
200 |
1.50 |
1.15 |
5.31 |
4.00 |
1.62 |
4.75 |
32-40 |
1020382 |
SS150DA208731 |
1/64 - 3/8 |
0.5 - 10 |
200 |
1.50 |
1.15 |
7.31 |
6.00 |
1.62 |
4.12 |
32-40 |
1020382 |
SS150DA108756 |
1/32 - 9/16 |
1 - 14 |
100 |
1.50 |
1.42 |
7.56 |
6.00 |
1.94 |
5.62 |
40-50 |
1013467 |
SS150DA188762 |
1/32 - 3/4 |
1 - 20 |
180 |
1.50 |
1.73 |
7.62 |
6.00 |
1.94 |
6.68 |
60-75 |
1020417 |
SS150DA408862 |
1/16 - 1" |
2 - 25 |
400 |
1.50 |
2.50 |
8.62 |
6.00 |
2.12 |
7.68 |
80-100 |
1022305 |
SS175DA188762 |
1/32 - 3/4 |
1 - 20 |
180 |
1.75 |
1.73 |
7.62 |
6.00 |
1.94 |
6.68 |
60-75 |
1020417 |
SS175DA408806 |
1/16 - 1" |
2 - 25 |
400 |
1.75 |
2.50 |
8.06 |
6.00 |
2.12 |
7.12 |
80-100 |
1022305 |
SS200DA188762 |
1/32 - 3/4 |
1 - 20 |
180 |
2.00 |
1.73 |
7.62 |
6.00 |
1.94 |
5.62 |
60-75 |
1020417 |
SS200DA408806 |
1/16 - 1" |
2 - 25 |
400 |
2.00 |
2.50 |
8.06 |
6.00 |
2.12 |
7.12 |
80-100 |
1022305 |
SS200DA509112 |
1/2 - 1 5/8 |
13 - 41 |
500 |
2.00 |
3.88 |
11.20 |
8.00 |
2.62 |
10.37 |
120-140 |
1020418 |
SS250DA408806 |
1/16 - 1" |
2 - 25 |
400 |
2.50 |
2.50 |
8.06 |
6.00 |
2.12 |
7.12 |
80-100 |
1022305 |
SS300DA408806 |
1/16 - 1" |
2 - 25 |
400 |
3.00 |
2.50 |
8.06 |
6.00 |
2.12 |
7.12 |
80-100 |
1022305 |
SS300DA509104 |
1/2 - 1 5/8 |
13 - 41 |
500 |
3.00 |
3.88 |
10.40 |
8.00 |
2.31 |
7.00 |
120-140 |
1020418 |
