DA (Double Angle) Collets
Made by Universal Engineering, Kennametal, Erickson, Smith Tool, Lyndex and many others
DA collets may be successfully employed for most routine applications, except milling.
Note: I've seen several statements from manufacturers that DA collets are not appropriate for milling.
e.g. Lyndex states:
"DA collet chucks are not designed for milling and can crack at the nose
when over-tightened or radial load is applied."
|

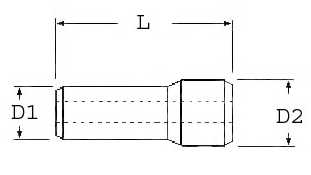

Size |
Tool Range |
D1 |
D2 |
L |
Price and
Availability |
DA300 |
1/32 - 1/4"
1 - 6mm |
0.300" |
0.375" |
1.000" |
Click |
DA200 |
3/64 - 25/64"
1 - 10mm |
0.454" |
0.539" |
1.188" |
Click |
DA100 |
3/64 - 9/16"
2.5 - 14mm |
0.65" |
0.769" |
1.438" |
Click |
DA180 |
3/64 - 3/4"
3.0 - 20mm |
0.873" |
1.035" |
1.625" |
Click |
DA400 |
3/32 - 63/64" |
1.205" |
1.455" |
2.000" |
Click |
DA500 |
3/8 - 1 5/8" |
1.95" |
2.25" |
2.00" |
Click |
DA700 |
? - 2-1/2" |
2.97" |
3.0" |
2.5" |
Click |
Note:
The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
|
|
