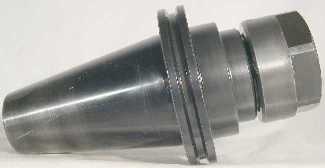

CAT Shank E-Style (TG) Collet Chuck

CAT tooling is also known as:
CV, V-Flange, Caterpillar, ISO 7388-1, IS 11173 (TC), DIN69871

These chucks are compatible with:
14pt Dot TG type collets (RDG, etc.)

CAT Shank E-Type (TG) Collet Chuck drawing

Universal Engineering (TSD) part numbers, dimensions and specifications

CAT

Tool Range

Universal Part No.

Preset
Range D

Preset
Screw

Wrench
Part No

TG Nut
Part No.

Price and
Availability

40	75	1/16 to 3/4	440109	2.81	1.88 Hex	2.31 - 3.31	605576	505955	440107
40	100	3/32 to 1	440017	3.00	2.25 Hex	2.94 - 3.50	601871	505646	440003
40	100	3/32 to 1	440019	4.00	2.25 Hex	2.94 - 4.50	601871	505646	440003
40	100	3/32 to 1	440021	6.00	2.25 Hex	2.94 - 6.50	601871	505646	440003

Click
for P&A

45	100	3/32 to 1	440025	3.00	2.25 Hex	2.94 - 4.25	601871	505646	440003
45	100	3/32 to 1	440027	4.00	2.25 Hex	2.94 - 5.25	601871	505646	440003
45	100	3/32 to 1	440029	6.00	2.25 Hex	2.94 - 7.25	601871	505646	440003

Click
for P&A

50	100	3/32 to 1	440041	3.00	2.25 Hex	2.94 - 4.25	601871	505646	440003
50	100	3/32 to 1	440043	3.50	2.25 Hex	2.94 - 5.25	601871	505646	440003
50	100	3/32 to 1	440045	5.50	2.25 Hex	2.94 - 7.25	601871	505646	440003
50	100	3/32 to 1	440047	7.50	2.25 Hex	2.94 - 9.25	601871	505646	440003
50	150	1/2 to 1-1/2	440049	3.00	3.50 Span	3.25 - 4.50	603613	9903538	440009
50	150	1/2 to 1-1/2	440051	3.50	3.50 Span	3.25 - 5.00	603613	9903538	440009
50	150	1/2 to 1-1/2	440053	5.50	3.50 Span	3.25 - 7.00	603613	9903538	440009

Click
for P&A

Related Links:
14pt Dot CAT Shank specs
Collet Nut Spanner specs

Note: The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
