JIS (Japanese) - Metric
Hardinge part numbers, dimensions and specs
Tap
Size |
Part No. |

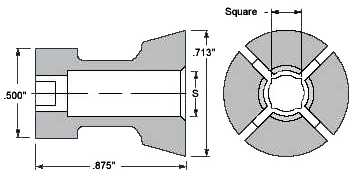

S
Tap Shank |
Square
Shank End |
M3 |
1761-00-17-030000 |
4mm |
0.1260" |
M4 |
1761-00-17-040000 |
5mm |
0.1575" |
M5 |
1761-00-17-055000 |
5.5mm |
0.2165" |
M6 |
1761-00-17-060000 |
6mm |
0.2362" |
M8 |
1761-00-17-080000 |
8mm |
~ |
M10 |
1761-00-17-100000 |
7mm |
0.2165" |
M12 |
1761-00-17-120000 |
8.5mm |
0.2559" |
|
ISO (England) - Metric
Hardinge part numbers, dimensions and specs
Tap
Size |
Part No. |
S (in)
Tap Shank |
S (mm)
Tap Shank |
Square
Shank End |
M2 |
1761-00-17-025020 |
0.098" |
2.5mm |
0.083" |
M2.5 |
1761-00-17-028022 |
0.110" |
2.8mm |
0.092" |
M3 |
1761-00-17-031025 |
0.124" |
3.15mm |
0.102" |
M3.5 |
1761-00-17-035028 |
0.140" |
3.55mm |
0.114" |
M4 |
1761-00-17-040031 |
0.157" |
4.0mm |
0.122" |
M4.5 |
1761-00-17-045035 |
0.177" |
4.5mm |
0.144" |
M5 |
1761-00-17-050040 |
0.197" |
5.0mm |
0.157" |
~ |
1761-00-17-056045 |
0.221" |
5.6mm |
0.181" |
~ |
1761-00-17-060049 |
0.236" |
6.0mm |
0.197" |
M6 |
1761-00-17-063050 |
0.248" |
6.3mm |
0.201" |
M6 |
1761-00-17-063050 |
0.248" |
6.3mm |
0.201" |
M7 |
1761-00-17-071056 |
0.280" |
7.1mm |
0.225" |
M8 |
1761-00-17-080063 |
0.315" |
8.0mm |
0.248" |
M9 |
1761-00-17-090071 |
0.284" |
9.0mm |
0.284" |
M10 |
1761-00-17-100080 |
0.394" |
10.0mm |
0.319" |
|
