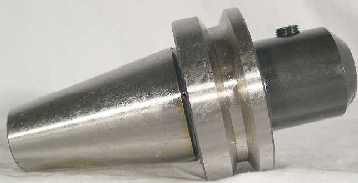

T.M. Smith Tool BT 40 End Mill Holder

TS

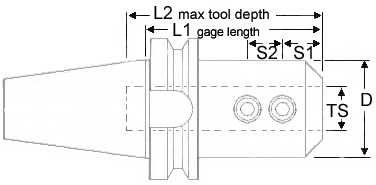

Tool Shank

Smith
Part No.

S1

L1

L2

S2

D

Set Screw
Part No.

0.1875

B40-EO18-256

0.50

2.56

3.88

*

0.75

FSS025-28-025

0.2500

B40-EO25-256

0.59

2.56

3.88

*

0.81

FSS025-28-025

0.3125

B40-EO31-256

0.60

2.56

3.88

*

1.00

FSS031-24-031

0.3750

B40-EO37-175

0.75

1.75

3.00

*

2.479

WLS037-24-031

0.3750

B40-EO37-250

0.75

2.50

3.88

*

1.38

WLS037-24-031

0.5000

B40-EO50-175

0.88

1.75

3.00

*

2.479

WLS043-20-038

0.5000

B40-EO50-250

0.88

2.50

3.88

*

1.38

WLS043-20-037

0.6250

B40-EO62-175

0.94

1.75

2.25

*

2.479

WLS056-18-050

0.6250

B40-EO62-275

0.94

2.75

2.50

*

1.62

WLS056-18-050

0.7500

B40-EO75-175

1.00

1.75

2.38

*

2.479

WLS062-18-050

0.7500

B40-EO75-275

1.00

2.75

2.88

*

2.00

WLS062-18-050

0.8750

B40-EO87-175

1.00

1.75

2.38

*

2.479

WLS062-18-050

0.8750

B40-EO87-400

1.00

4.00

4.18

0.81

2.00

WLS062-18-050

1.0000

B40-E100-175

1.12

1.75

2.38

*

2.479

WLS062-18-050

1.0000

B40-E100-400

1.12

4.00

3.50

1.00

2.48

WLS075-16-068

1.2500

B40-E125-200

1.12

2.00

2.38

*

2.479

WLS062-18-050

1.2500

B40-E125-425

1.12

4.25

3.50

1.00

2.48

WLS075-16-068
