Royal Oak (R-O, RO) Collets

14pt DotUsed on Royal Oak, Seneca Falls and ???? machines.

Check Price & Availability

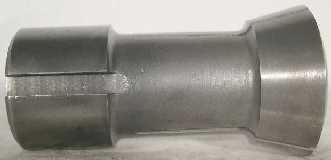

R-O collet Picture 1    R-O collet Picture 2

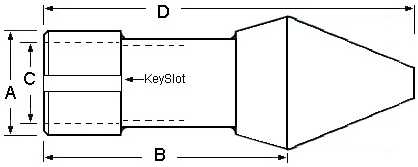

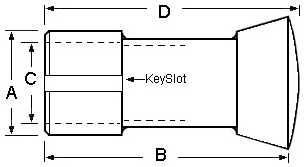

R-O collet drawing 1    R-O collet drawing 2
Information from Hardinge website

Collet

A

B

C
Int Thread

D

Hex
Capacity

Round
Capacity

Square
Capacity

.800" capacity

1.250"

2.938"

0.875" x 16 RH

3.1"

11/16"

0.800"

9/16"

1-1/8" capacity

? note 1

? note 1

? note 1

? note 1

31/32"

1-1/8"

25/32"

.800" Extended Nose

1.250"

2.938"

0.875" x 16 RH

4.437"

11/16"

0.800"

9/16"

1-1/8" Extended Nose

? note 1

? note 1

? note 1

? note 1

31/32"

1-1/8"

25/32"
Note 1: The only dimensions I can find on the 1-1/8" capacity collet is from an old Hardinge website drawing.
35pt Space15pt Space It shows the same dimensions as the 0.8" capacity collet - Which I suspect is wrong.

Note: The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
