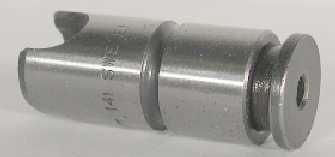

Rigid Adapters (Type T and TC)
Features:
 Direct Drive - without torque clutch.
With positive locking of the tap.
TC adapters provide coolant along the tap.

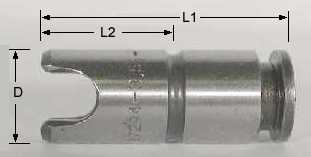

Type |
Tap Range |
D |
L1 |
L2 |
T-8 |
M2 - M8, #0 to 5/16" |
14.9mm
0.587" |
1.52" |
0.815" |
T-12
T-12C |
M4 - M16, #8 to 5/8" |
21mm
0.827" |
?" |
21mm
0.827" |
T-24
T-24C |
M8 - M30, 5/16" to 1-1/8" |
36mm
1.417" |
3.25" |
1.75" |
T-42
T-42C |
M18 - M42, 3/4" to 1-5/8" |
50mm
1.968"
* |
?" |
?" |
* These values need to be confirmed from actual units.

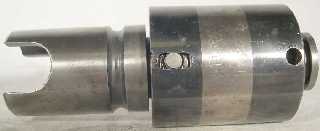

Torque Control Adapters (Type TK)
Features:
With built in adjustable safety clutch.
With positive locking of the tap.

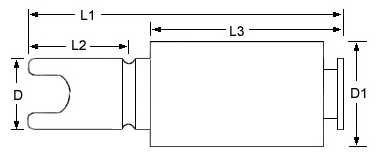

Type |
Tap Range |
D |
L1 |
L2 |
L3 |
D1 |
TK-8 |
M2 - M8, #0 to 5/16" |
14.9mm
0.587" |
?" |
0.815" |
47mm
1.85" |
23mm
0.91" |
TK-12 |
M4 - M16, #8 to 5/8" |
21mm
0.827" |
82.6mm
3.25" |
21mm
0.827" |
56 - 63mm
2.21 - 2.48" |
30mm
1.18" |
TK-24 |
M8 - M30, 5/16" to 1-1/8" |
36mm
1.417" |
4.8" * |
1.75" |
70 - 85mm
2.76 - 3.35" |
50mm
1.97" |
* The 1" adapter I have is 5.5" long.
