Parlec Ball-Drive Quick-Change Tap Adapters
Check Price & Availability
Click for Overview of Quick Change tapping systems

Numertap 80 Vertical Line Numertap 700 Vertical Line Numertap 770

Numertap 80 Tap Adapters

Features:
14pt DotFor use with Numertap 80 Torque-Controlled tap chucks.

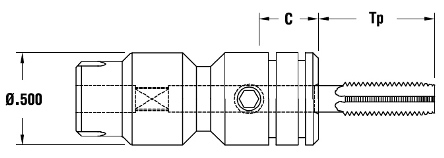

Numertap 80 tap adapter drawing Numertap 80 tap adapter picture

Part #

Tap Size

C

TP

Metric Tap Size
(ANSI)

8401-#4

#4

0.38

0.87

M2.5

8401-#6

#6

0.38

1.00

M3.5

8401-#8

#8

0.38

1.00

M4

8401-#10

#10

0.38

1.18

M5

8401-#12

#12

0.38

1.16

~

8401-1/4

1/4"

0.38

1.25

M6



Numertap 700 Tap Adapters

Features:
14pt DotFor use with Numertap 700 Torque-Controlled tap chucks.
14pt DotNUMERTAP torque controlled adapters require no adjustment.
14pt SpaceEach adapter is calibrated for approximately 80% of the tap breakage torque for most standard taps.

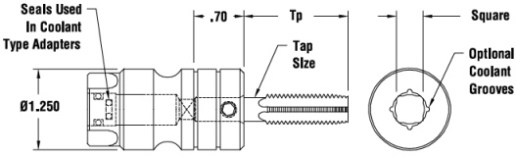

Numertap 700 tap adapter drawing Numertap 700 tap adapter picture

Part #

Coolant*

Coolant Groove*

Tap Size

Metric Tap Size
(ANSI)

TP

Shank

Square

7711-#6

7711C-#6

7711CG-#6

#6

M3.5

0.94

0.141

0.110

7711-#8

7711C-#8

7711CG-#8

#8

M4

1.00

0.168

0.131

7711-#10

7711C-#10

7711CG-#10

#10

M5

1.37

0.194

0.152

7711-#12

7711C-#12

7711CG-#12

#12

~

1.34

0.218

0.155

7711-025

7711C-025

7711CG-025

1/4"

M6

1.44

0.255

0.191

7711-031

7711C-031

7711CG-031

5/16"

M7,M8

1.59

0.318

0.238

7711-037

7711C-037

7711CG-037

3/8"

M10

1.78

0.381

0.286

7711-043

7711C-043

7711CG-043

7/16"

~

2.00

0.323

0.242

7711-050

7711C-050

7711CG-050

1/2"

M12

2.19

0.367

0.275

7711-056

7711C-056

7711CG-056

9/16"

M14

2.34

0.429

0.322

7711-062

7711C-062

7711CG-062

5/8"

M16

2.50

0.480

0.360

7711-068

7711C-068

7711CG-068

11/16"

M18

2.41

0.542

0.406

7711-075

7711C-075

7711CG-075

3/4"

~

2.56

0.590

0.442

7711-081

7711C-081

7711CG-081

13/16"

M20

2.53

0.652

0.489

7711-087

7711C-087

7711CG-087

7/8"

M22

2.79

0.697

0.523

7711-093

7711C-093

7711CG-093

15/16"

M24

3.01

0.760

0.570

7711-100

7711C-100

7711CG-100

1"

M25

3.15

0.800

0.600

7714-006

7714C-006

7714CG-006

1/16 NPT
1/8 NPT-SS

~

1.00

0.312

0.234

7714-012

7714C-012

7714CG-012

1/8 NPT-LS

~

1.00

0.437

0.328

7714-025

7714C-025

7714CG-025

1/4 NPT

~

1.25

0.562

0.421

7714-037

7714C-037

7714CG-037

3/8 NPT

~

1.31

0.700

0.531

7714-050

7714C-050

7714CG-050

1/2 NPT

~

1.50

0.687

0.515
*Coolant requires oil hole tap. Coolant groove uses standard taps. Both require coolant-fed unit


Numertap 770 Standard Length Tap Adapters

Features:
14pt DotFor use with Numertap 770 Positive-Drive tap chucks.
14pt DotCan also be used in Numertap 700 chucks. But will result in loss of torque control.
14pt DotAlso available in 3.7" (-3) and 6.7" (-6) extended length.

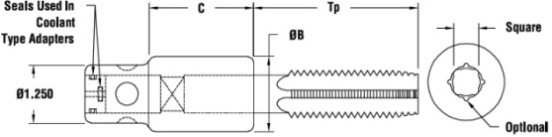

Numertap 770 tap adapter drawing Numertap 770 tap adapter picture

Part #

Coolant*

Coolant Groove*

Tap Size

Metric Tap Size
(ANSI)

B

C

TP

7716-#6

7716C-#6

7716CG-#6

#6

M3.5

1.25

2.10

1.19

7716-#8

7716C-#8

7716CG-#8

#8

M4

1.25

2.10

1.27

7716-#10

7716C-#10

7716CG-#10

#10

M5

1.25

2.10

1.51

7716-#12

7716C-#12

7716CG-#12

#12

~

1.25

2.10

1.51

7716-025

7716C-025

7716CG-025

1/4"

M6

1.25

2.10

1.63

7716-031

7716C-031

7716CG-031

5/16"

M7,M8

1.25

2.10

1.79

7716-037

7716C-037

7716CG-037

3/8"

M10

1.25

2.10

2.00

7716-043

7716C-043

7716CG-043

7/16"

~

1.25

2.10

2.06

7716-050

7716C-050

7716CG-050

1/2"

M12

1.25

2.10

2.23

7716-056

7716C-056

7716CG-056

9/16"

M14

1.25

2.10

2.40

7716-062

7716C-062

7716CG-062

5/8"

M16

1.25

2.10

2.03

7716-068

7716C-068

7716CG-068

11/16"

M18

1.61

2.25

2.17

7716-075

7716C-075

7716CG-075

3/4"

~

1.61

2.25

2.32

7716-081

7716C-081

7716CG-081

13/16"

M20

1.61

2.25

2.52

7716-087

7716C-087

7716CG-087

7/8"

M22

1.61

2.25

2.71

7716-093

7716C-093

7716CG-093

15/16"

M24

1.61

2.25

2.60

7716-100

7716C-100

7716CG-100

1"

M25

1.61

2.25

3.05

7716-106

7716C-106

7716CG-106

1-1/16"
1-1/8"

M27

1.61

2.25

2.99
3.30

7716-118

7716C-118

7716CG-118

1-3/16"
1-1/4"

M30

1.61

2.25

2.56
2.88

7716-131

7716C-131

7716CG-131

1-5/16"
1-3/8"

M32

1.98

2.25

2.84
3.16

7716-144

7716C-144

7716CG-144

1-7/16"
1-1/2"

~

1.98

2.25

4.06
4.37

7716-162

7716C-162

7716CG-162

1-5/8"

~

1.98

2.25

4.67

7717-006

7717C-006

7717CG-006

1/16 NPT
1/8 NPT-SS

~

1.25

1.375

1.06

7717-012

7717C-012

7717CG-012

1/8 NPT-LS

~

1.25

1.375

1.06

7717-025

7717C-025

7717CG-025

1/4 NPT

~

1.25

1.375

1.18

7717-037

7717C-037

7717CG-037

3/8 NPT

~

1.25

1.375

1.06

7717-050

7717C-050

7717CG-050

1/2 NPT

~

1.61

2.25

1.53

7717-075

7717C-075

7717CG-075

3/4 NPT

~

1.61

2.25

1.64

7717-100

7717C-100

7717CG-100

1" NPT

~

1.61

2.25

1.93

7717-125

7717C-125

7717CG-125

1-1/4 NPT

~

1.98

2.25

2.00
*Coolant requires oil hole tap. Coolant groove uses standard taps. Both require coolant-fed unit
