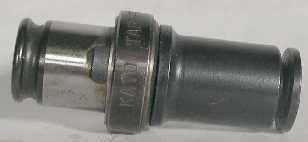

KATO Tap Adapters
Features:
 Base and -L models has torque control clutch.
-N models are direct drive - without torque control
-MO models have oil hole
Available for ISO, DIN and ANSI Taps.
Model |
Tap Range
Metric |
Tap Range
Unified |
Tap Range
Pipe |
D1
mm |
D2
mm |
D3
mm |
L1
mm |
L2
mm |
TC 206 |
M2 - M8 |
#2 - 5/16" |
~ |
15 |
21 |
15 |
16 |
48 |
TC 206L |
" |
" |
~ |
" |
" |
" |
" |
78 - 108 |
TC 412 |
M3 - M16 |
#5 - 5/8" |
1/8" - 3/8" |
24 |
33 |
20 - 27 |
21 |
64 - 71 |
TC 412L |
" |
" |
" |
" |
" |
" |
" |
124 - 170 |
TC 412N |
" |
" |
" |
" |
" |
" |
" |
44.5 |
TC11022 |
M8 - M27 |
3/8" - 1" |
1/8" - 3/4" |
? |
50 |
32 - 36 |
? |
? |
TC11022L |
" |
" |
" |
" |
" |
" |
" |
? |
TC11022N |
" |
" |
" |
" |
" |
" |
" |
? |
TC2035 |
M18 - M36 |
3/4" - 1-3/8" |
3/4" - 1" |
? |
70 |
46 |
? |
? |
TC2035L |
" |
" |
" |
" |
" |
" |
" |
? |
TC2035N |
" |
" |
" |
" |
" |
" |
" |
? |
TC3050 |
M27 - M56 |
1" - 2-1/4" |
3/4" - 1-3/4" |
? |
87 |
64 - 68 |
? |
? |
TC3050N |
" |
" |
" |
" |
" |
" |
" |
? |
TC58100 |
M50 - M100 |
2" - 4" |
1-3/4" - 3" |
? |
116 |
86 - 90 |
? |
? |
Note:
The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
|
