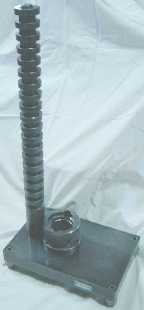

Kwik-Switch Presetting Height Gages
|
Check Price & Availability
Universal Engineering (TSD)

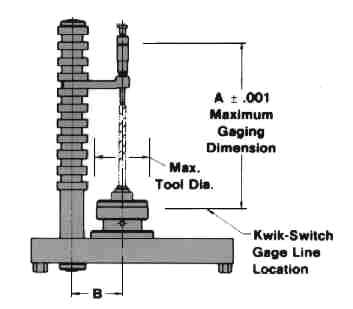

part numbers, dimensions and specifications
Kwik
Switch |
Universal
Part No. |
A |
B |
Max.
Tool Dia. |
Setting
Socket |
100 |
803270 |
10.00 |
3.00 |
4.00 |
801574 |
200 |
805655 |
10.00 |
3.00 |
4.00 |
805661 |
300 |
805656 |
10.00 |
3.00 |
4.00 |
805662 |
300 |
805657 |
15.00 |
3.00 |
4.00 |
805662 |
400 |
805658 |
15.00 |
3.00 |
4.00 |
805663 |
400 |
805659 |
20.00 |
3.00 |
4.00 |
805663 |
Related Links:
 Kwik-Switch Shank specs
Note:
The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
|
|
