Kwik-Switch Jacobs Taper Adapter

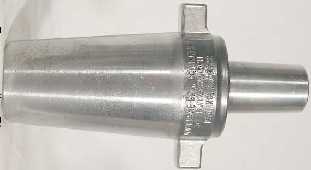

Kwik-Switch Taper to Jacobs Taper Adapter drawing Kwik-Switch 200 Jacobs Taper #3 Adapter 80698
Universal Engineering (TSD) part numbers and dimensions

Kwik-Switch
Size

Jacobs Taper #

Universal
Part No.

A

C

Price and
Availability

100

2

80153

.559

.97

~

200

0

80251

.250

.53

200

1

80252

.384

.75

200

2

80253

.559

.97

200

3

80698

.811

1.31

200

4

801163

1.124

1.75

200

6

80254

.676

1.09

200

33

80255

.624

1.09

Click
for P&A

300

2

80352

.559

.97

300

3

80353

.811

1.31

300

4

80354

1.124

1.75

300

6

80355

.676

1.09

300

33

80356

.624

1.09

Click
for P&A

400

2

80452

.559

.97

400

3

80453

.811

1.31

400

4

80454

1.124

1.75

400

6

80455

.676

1.09

400

33

80456

.624

1.09

Click
for P&A

Related Links:
14pt DotKwik-Switch Shank specs
14pt DotJacobs Taper Shank specs

Note: The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
