Kwik-Switch Automotive shank Adapters
(Adjustable Adapters, Acme Shank Adapters)
|
Features:
 These are used for adapting Automotive (Adjustable Acme threaded shank) tooling to Kwik-Switch spindles
Full length key slot
Set screw
Check Price & Availability

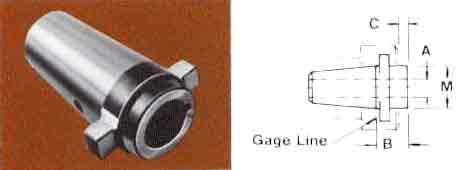

Universal Engineering (TSD) part numbers, dimensions and specifications
Kwik-Switch
Size No. |
Universal
Part No. |
A |
B |
C |
M |
200 |
80291 |
0.6250" |
0.781" |
0.19" |
1.00" |
200 |
80292 |
0.7500" |
0.781" |
0.19" |
1.25" |
300 |
80392 |
0.6250" |
0.875" |
0.16" |
1.00" |
300 |
80393 |
0.7500" |
0.875" |
0.16" |
1.25" |
300 |
80394 |
0.8750" |
0.875" |
0.16" |
1.25" |
300 |
80395 |
1.000" |
0.875" |
0.16" |
1.50" |
300 |
80396 |
1.062" |
0.875" |
0.16" |
1.56" |
400 |
80494 |
0.7500" |
1.000" |
0.16" |
1.25" |
400 |
80495 |
0.8750" |
1.000" |
0.16" |
1.25" |
400 |
80496 |
1.000" |
1.000" |
0.16" |
1.50" |
400 |
80497 |
1.062" |
1.000" |
0.16" |
1.56" |
400 |
80499 |
1.375" |
1.000" |
0.16" |
1.88" |
Note:
The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
|
|
