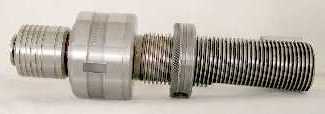

Glenco Type KG Kwik-Grip Floating Tap Holder
|
Features:
Shank = Acme thread, adjustable adapter type.
Kwik-Grip float sleeve for fast insertion and removal of taps.
Lines up automatically under load.
Provides unrestricted float, corrects misalignment within 1/32" radius and more on larger size holders.
Operates perfectly in any position.
|
Note!
Separate Holder Required for Each Tap Size.
|
|
See list of all Kwik-Grip Floating Chucks I have for sale

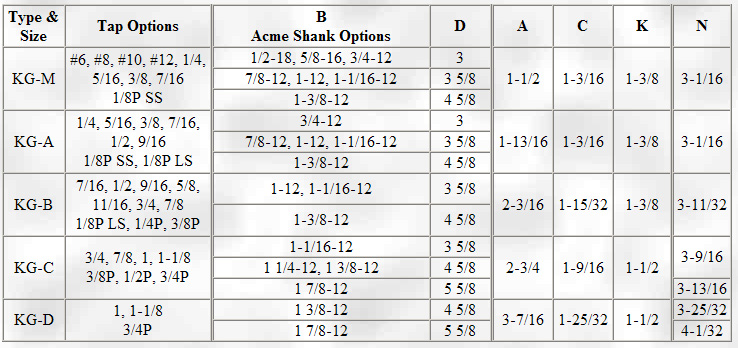

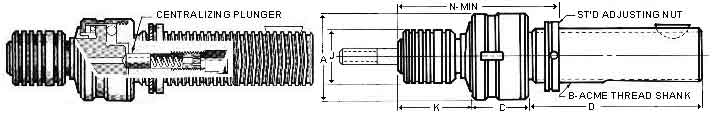

Part No. |
Tap |
Shank |
D |
A |
C |
K |
N |
Price and
Availability |
GLE-KGM-3135 |
1/4 |
1 1/16-12 |
3-5/8 |
1-1/2 |
1-3/16 |
1-3/8 |
3-1/16 |
Click |
GLE-KGM-3144 |
5/16 |
1 1/16-12 |
3-5/8 |
1-1/2 |
1-3/16 |
1-3/8 |
3-1/16 |
Click |
GLE-KGM-3159 |
3/8 |
7/8-12 |
3-5/8 |
1-1/2 |
1-3/16 |
1-3/8 |
3-1/16 |
Click |
GLE-KGM-3161 |
3/8 |
1 1/16-12 |
3-5/8 |
1-1/2 |
1-3/16 |
1-3/8 |
3-1/16 |
Click |
GLE-KGM-3252 |
7/16 |
3/4-12 |
3 |
1-1/2 |
1-3/16 |
1-3/8 |
3-1/16 |
Click |
GLE-KGA-3148 |
5/16 |
1 1/16-12 |
3-5/8 |
1-13/16 |
1-3/16 |
1-3/8 |
3-1/16 |
Click |
GLE-KGA-3166 |
3/8 |
1 1/16-12 |
3-5/8 |
1-13/16 |
1-3/16 |
1-3/8 |
3-1/16 |
Click |
GLE-KGA-3175 |
7/16 |
1 1/16-12 |
3-5/8 |
1-13/16 |
1-3/16 |
1-3/8 |
3-1/16 |
Click |
GLE-KGA-3183 |
1/2 |
1 1/16-12 |
3-5/8 |
1-13/16 |
1-3/16 |
1-3/8 |
3-1/16 |
Click |
GLE-KGB-3187 |
1/2 |
1 1/16-12 |
3-5/8 |
2-3/16 |
1-15/32 |
1-3/8 |
3-11/32 |
Click |
GLE-KGB-3335 |
3/8P |
1-12 |
3-5/8 |
2-3/16 |
1-15/32 |
1-3/8 |
3-11/32 |
~ |
GLE-KGC-3231 |
1-1/8 |
1 3/8-12 |
4-5/8 |
2-3/4 |
1-9/16 |
1-1/2 |
3-9/16 |
Click |
GLE-KGC-3340 |
3/8P |
1 3/8-12 |
4-5/8 |
2-3/4 |
1-9/16 |
1-1/2 |
3-9/16 |
Click |
GLE-KGC-3377 |
3/8P |
1 7/8-12 |
5-5/8 |
2-3/4 |
1-9/16 |
1-1/2 |
3-13/16 |
~ |
GLE-KGD-3362 |
3/4P |
1 7/8-12 |
5-5/8 |
3-7/16 |
1-25/32 |
1-1/2 |
4-1/32 |
~ |
Note:
The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
|
