HDG Collets

Made by Kennametal ????
The only info I have on HDG collets is from units I have in hand.
I was told the spec for these is HDG-C-193150.

Check Price & Availability

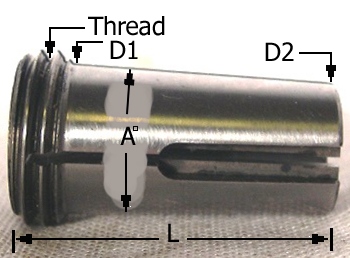

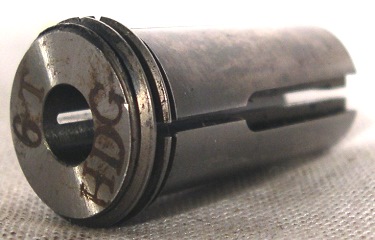

HDGCollet Drawing HDGCollet Picture
Approximate measurements from collets I have

Style*

Collet Range

D1

D2

L

Thread

A° angle

HDG01*

? to ? mm

13.45mm

11.75mm to 11.8mm

28.2mm to 29.95mm

M15x1.5

3°

HDG02*

? to ? mm

21.5mm

19.8mm

30mm

M24x1.5

3°

* this is my Style #, I don't know what the proper style ID is.

Note: The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
