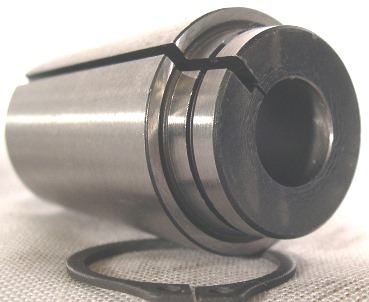

FL Collets
Made by FL Tool Holders
These are precision collets, manufacrured within +-0.0001" of specified tool shank size.
FL Tool Holders recommends a +0.0000 - 0.0005" tolerance on the tool shank to ensure maximum accuracy
and clamping performance (up to -0.0015 tolerance is acceptable if necessary).
Tool shank taper should not exceed 0.0002".
FL Tool Holders Catalog
|
Check Price & Availability
FL Tool Holders information

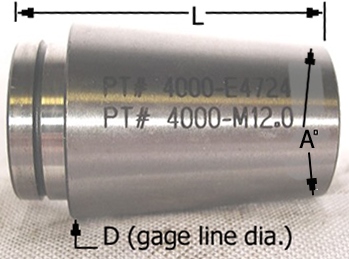

Series |
Collet Range |
D |
L |
A° angle |
1002 |
0.0625 - .2500"
1.5875 - 6.3500mm |
0.4390" |
1.005" |
?° |
2002 |
0.0625 - .3750"
1.5875 - 9.5250mm |
0.5630" |
1.035" |
11° |
3002 |
0.1094 - .5000"
2.7788 - 12.7000mm |
0.7200" |
1.185" |
?° |
4002 |
0.1094 - .7500"
2.7788 - 19.0500mm |
1.1310" |
1.770" |
11° |
5002 |
0.2500 - 1.0000"
6.350 - 25.4000mm |
1.4460" |
2.200" |
?° |
6002 |
0.3750 - 1.3750"
9.5250 - 34.9250mm |
1.9100" |
2.700" |
?° |
Note: I measured the A° from units I have.
Note:
The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
|
|
