FDC Collets
Made by Lyndex, NT and others
FDC collets collapse 0.5mm (0.019") while maintaining full accuracy.
Lyndex guarantees tolerance within 1 micron (0.00005") at the collet nose.
Accuracy is better than 0.00019" at 4 x D.
|
Check Price & Availability
Information from Lyndex on-line catalog 12/13/12

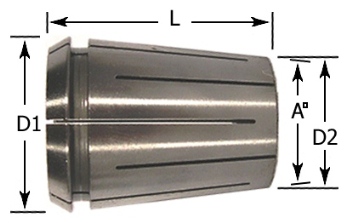

Style |
Collet Range |
D1 |
D2 |
L |
A°
angle |
FDC07 |
0.5 - 7mm
1/64 - 17/64" |
11.3mm
0.445" |
7.50mm
0.295" |
18mm
0.709" |
16° |
FDC09 |
2.5 - 9mm
3/32 - 11/32" |
14.7mm
0.579" |
10mm
0.394" |
23mm
0.906" |
12° |
FDC12 |
3 - 12mm
1/8 - 15/32" |
19.7mm
0.776" |
14.5mm
0.571" |
27.5mm
1.083" |
12° |
FDC16 |
3.5 - 16mm
9/64 - 5/8" |
23.5mm
0.925" |
17.3mm
0.681" |
32.5mm
1.279" |
12° |
FDC22 |
3.5 - 22mm
9/64 - 55/64" |
32mm
1.260" |
24.4mm
0.961" |
39.5mm
1.555" |
12° |
Note:
The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
|
|
