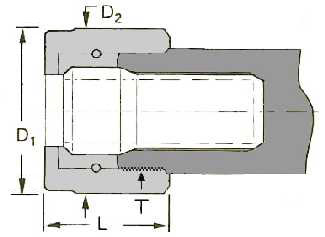

Kennametal Type 04
Kennametal part numbers, dimensions and specifications
Collet
Size |
Part No. |
L |
D1 |
D2 Hex |
Thread |
Wrench
Part No. |
300 |
LNA304M |
1.128 |
.560 |
.500 |
? |
OEW050 |
200 |
LNA204M |
1.416 |
.845 |
.750 |
? |
OEW075 |
100 |
LNA104M |
1.508 |
1.063 |
.937 |
? |
OEW094 |
180 |
LNA184M |
1.602 |
1.438 |
1.190 |
? |
OEW119 |
400 |
LNA404M |
2.008 |
1.873 |
1.690 |
? |
OEW168 |

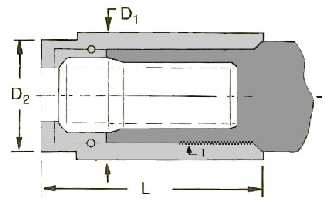

Kennametal Type 08
Kennametal part numbers, dimensions and specifications
Collet
Size |
Part No. |
L |
D1
(max) |
D2 Hex |
Thread |
Wrench
Part No. |
300 |
LNA308M |
.73 |
.77 |
.69 |
? |
OEW068 |
300 |
NPA329 |
.50 |
.84 |
.75 |
? |
OEW075 |
300 |
NPA338 |
.71 |
.69 |
.63 |
? |
OEW062 |
200 |
NPA208 |
.75 |
1.15 |
1.00 |
? |
OEW100 |
200 |
NPA229 |
.62 |
1.16 |
1.00 |
? |
OEW100 |
200 |
NPA238 |
.73 |
.94 |
.87 |
? |
OEW088 |
100 |
LNA108M |
.91 |
1.44 |
1.25 |
? |
OEW125 |
100 |
NPA139 |
.91 |
1.19 |
1.13 |
? |
OEW112 |
180 |
NPA188 |
.91 |
1.73 |
1.5 |
1.25-12 |
OEW150 |
180 |
LNA138 |
.84 |
1.50 |
1.38 |
? |
OEW138 |
400 |
NPA408 |
1.19 |
2.50 |
2.25 |
? |
OEW225 |
500 |
NPA509 |
1.44 |
3.86 |
? |
? |
? |

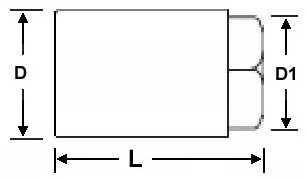

TM Smith
TM Smith part numbers, dimensions and specifications
Collet
Size |
Part No. |
L |
D
Hex |
Thread |
Torque
FT-LB |
Wrench
Part No. |
200 |
DA20N |
0.98 |
1.12 |
? |
25 |
? |
180 |
DA18N |
0.86 |
1.63 |
? |
45 |
? |
Command
Mostly Command part numbers, dimensions and specifications
Collet
Size |
Part No. |
L |
D |
D1
Hex |
Thread |
Torque
FT-LB |
Wrench
Part No. |
300 |
DACN-0030 |
? |
0.55" |
1/2" |
7/16-32 |
25 |
? |
200 |
DACN-0020 |
? |
0.83" |
3/4" |
11/16-20 |
25 |
? |
100 |
DACN-0010 |
1.59" |
1.06" |
31/32" |
15/16-20 |
25 |
? |
180 |
DACN-0018 |
1.6" |
1.44" |
1.25" |
1.25-12 |
25 |
? |
Note:
The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
|
|
