Warner & Swasey Master Collets and Pads
|
 These are used on many different Turret Lathes. See table below for partial list of the machines.

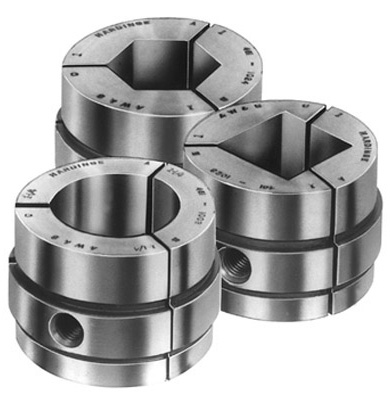

The pad clamping system on a conventional-style master collet is designed with a screw that goes through the
 collet head angle and against the side of the pad's shoulder. With this system, the operator must remove the collet
from the machine spindle to change the pads.
|
|
Check Price & Availability

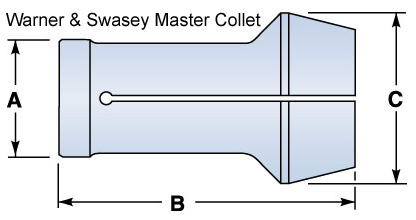

W&S # |
Hardinge # |
Somma &
Balas # |
A |
B |
C |
D |
E |
Max
Round |
Max
Hex |
Max
Square |
461 |
5835 |
2023 |
2.058" |
4.750" |
2.830" |
1.875" |
1.375" |
1-1/2" |
1-18/64" |
1-3/64" |
1129 |
5839 |
2064 |
2.308" |
6.000" |
3.630" |
2.375" |
1.750" |
1-3/4" |
1-33/64" |
1-15/64" |
471 |
5843 |
2049 |
3.119" |
6.500" |
4.340" |
3.000" |
1.875" |
2-1/2" |
2-5/32" |
1-3/4" |
2530* |
? |
5200 |
?" |
?" |
?" |
approx 2.4" |
1.5" |
2-1/8" |
1-27/32" |
1-1/2" |
* these do not have the threaded mounting hole or central ridge shown in the drawing.
W&S # |
Hardinge # |
Somma &
Balas # |
Used on: |
461 |
5835 |
2023 |
Warner and Swasey Turret Lathes #2, #3, #4 1-1/2", #2 EC, 16" EC |
1129 |
5839 |
2064 |
Warner and Swasey Turret Lathes #4 2" and #3 1-3/4" |
471 |
5843 |
2049 |
Warner and Swasey Turret Lathes #5, 1A |
2530 |
? |
5200 |
Warner & Swasey Automatic 2-1/4" Five Spindle (Master Pusher Pads) |
Note:
The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
|
|
