CAT 40 End Mill Adapter

Note: CAT 40 Shank is also known as CAT40,CAT-40, CV40, V-Flange, ANSI B5.50,
Caterpillar "V-Flange" standard, ISO 7388-1, IS 11173 (TC), DIN69871.

Check Price and Availability

TSD Universal CAT 40 End Mill Adapter drawing

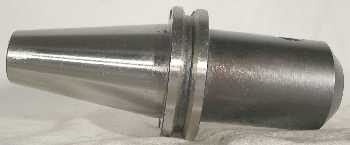

TSD Universal 3/4 in. CAT 40 End Mill Holder # 463660

Universal Engineering (TSD) part numbers, dimensions and specifications
Tool Shank Size	Universal Part No.	B	C	D	E	M	Set Screw Part No.
.1875	4617755	0.56	1.38	2.88	*	0.68	FS1032 02500
.1875	4610557	0.56	4.00	2.32	*	0.69	FS1620 02500
.2500	4617756	0.62	1.38	2.88	*	0.88	FS1620 03125
.2500	4610558	0.62	4.00	2.38	*	1.00	FS1620 03750
.3125	4617757	0.56	1.38	2.88	*	1.00	FS2018 03125
.3125	4610559	0.75	4.00	2.50	*	1.00	FS2018 03125
.3750	4617745	0.62	1.38	2.88	*	1.00	602611
.3750	463657	0.75	2.50	2.56	*	1.12	602611
.3750	4615739	0.75	3.00	2.56	*	1.12	602611
.3750	4610234	0.75	4.00	2.56	*	1.12	602611
.3750	4611616	0.75	5.00	2.56	*	1.12	602611
.3750	4612034	0.75	6.00	2.56	*	1.12	602611
.5000	4617746	0.88	1.75	3.25	*	1.75	602713
.5000	463658	0.88	2.50	3.00	*	1.38	602713
.5000	4615740	0.88	3.00	3.00	*	1.38	602713
.5000	4610235	0.88	4.00	3.00	*	1.38	602713
.5000	4612037	0.88	5.00	3.00	*	1.38	602713
.5000	4612038	0.88	6.00	3.00	*	1.38	602713
.6250	4617747	0.94	1.75	2.10	*	1.75	602812
.6250	4615741	0.94	3.00	3.50	*	1.75	602812
.6250	463659	0.94	3.38	3.50	*	1.75	602812
.6250	4612041	0.94	5.00	3.50	*	1.75	602812
.6250	4612042	0.94	6.00	3.50	*	1.75	602812
.7500	4617748	1.00	1.75	2.35	*	1.75	603014
.7500	4615742	1.00	3.00	3.88	*	1.75	603014
.7500	463660	1.00	3.38	3.88	*	1.75	603014
.7500	4612045	1.00	5.00	3.88	*	1.75	603014
.7500	4612046	1.00	6.00	3.88	*	1.75	603014
.8750	4617749	1.00	1.75	2.35	*	1.75	603015
.8750	463661	1.00	3.38	4.25	0.81	1.75	603015
.8750	4610238	1.00	4.00	4.25	0.81	1.75	603015
.8750	4612050	1.00	6.00	4.25	0.81	1.75	603015
1.0000	4617750	1.00	1.75	2.35	*	2.00**	603126
1.0000	463662	1.12	3.38	3.12	1.00	2.12**	603113 603131
1.0000	4610239	1.12	4.00	4.00	1.00	2.12**	603113
1.0000	4611405	1.12	6.00	5.00	1.00	2.12**	603113
1.2500	4617751	1.00	2.00	2.22	*	2.47**	603126
1.2500	466997	1.12	4.25	2.56	1.00	2.50**	603115
1.2500	4612056	1.12	6.00	2.56	1.00	2.50**	603115

* Single set screw

** Body diameter exceeds 1.750" (which deviates from ANSI B5.50-1994)
and may not have clearance for some tool changers.
