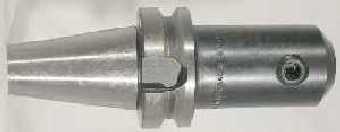

BT End Mill Adapters

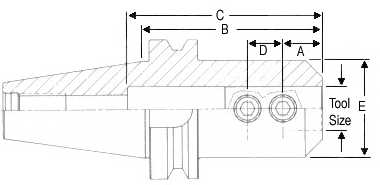

Universal Engineering (TSD) part numbers, dimensions and specifications
Shank
Size |
Tool
Size |
Universal
Part No. |
A |
B |
C |
D |
E |
Set
Screw |
|
Price and
Availability
|
BT30 |
.1875 |
4611451 |
0.56 |
2.50 |
2.32 |
* |
0.69 |
FS1620 02500 |
BT30 |
.2500 |
4611452 |
0.62 |
2.50 |
2.38 |
* |
1.00 |
FS1620 03750 |
BT30 |
.3125 |
4611453 |
0.75 |
2.50 |
2.50 |
* |
1.00 |
FS1620 03125 |
BT30 |
.3750 |
4611454 |
0.62 |
2.50 |
2.56 |
* |
1.25 |
602611 |
BT30 |
.5000 |
4611455 |
0.62 |
2.50 |
1.88 |
* |
1.25 |
602710 |
BT30 |
.6250 |
4611456 |
0.62 |
2.50 |
1.94 |
* |
1.25 |
602814 |
BT30 |
.7500 |
4611457 |
0.62 |
2.50 |
2.00 |
* |
1.50 |
603015 |
|
~
|
BT35 |
.1875 |
4610551 |
0.56 |
3.00 |
2.32 |
* |
0.69 |
FS1620 02500 |
BT35 |
.2500 |
4610552 |
0.62 |
3.00 |
2.38 |
* |
1.00 |
FS1620 03750 |
BT35 |
.3125 |
4610553 |
0.75 |
3.00 |
2.50 |
* |
1.00 |
FS1620 03125 |
BT35 |
.3750 |
468183 |
0.75 |
2.00 |
2.56 |
* |
1.00 |
602611 |
BT35 |
.5000 |
468184 |
0.88 |
2.25 |
3.00 |
* |
1.38 |
602713 |
BT35 |
.6250 |
468185 |
0.94 |
2.25 |
3.50 |
* |
1.62 |
602812 |
BT35 |
.7500 |
468186 |
1.00 |
2.75 |
3.88 |
* |
1.75 |
603014 |
BT35 |
.8750 |
468187 |
1.00 |
2.75 |
2.09 |
* |
2.00 |
603014 |
BT35 |
1.000 |
468188 |
1.12 |
2.75 |
2.34 |
* |
2.06 |
603113 |
|
~
|
BT40 |
.1875 |
4610554 |
0.56 |
3.00 |
2.32 |
* |
0.69 |
FS1620 02500 |
BT40 |
.2500 |
4610555 |
0.62 |
3.00 |
2.38 |
* |
1.00 |
FS1620 03750 |
BT40 |
.3125 |
4610556 |
0.75 |
3.00 |
2.50 |
* |
1.00 |
FS1620 03125 |
BT40 |
.3750 |
466355 |
0.75 |
2.56 |
2.56 |
* |
1.12 |
602611 |
BT40 |
.3750 |
4615774 |
0.75 |
4.00 |
2.56 |
* |
1.12 |
602611 |
BT40 |
.5000 |
466356 |
0.88 |
2.56 |
3.00 |
* |
1.38 |
602713 |
BT40 |
.5000 |
4615775 |
0.88 |
4.00 |
3.00 |
* |
1.38 |
602713 |
BT40 |
.6250 |
466357 |
0.94 |
2.56 |
3.50 |
* |
1.62 |
602812 |
BT40 |
.6250 |
4614448 |
0.94 |
4.00 |
3.50 |
* |
1.62 |
602812 |
BT40 |
.7500 |
466358 |
1.00 |
2.56 |
3.88 |
* |
1.88 |
603014 |
BT40 |
.7500 |
4615776 |
1.00 |
4.00 |
3.88 |
* |
1.88 |
603014 |
BT40 |
.8750 |
466359 |
1.00 |
3.34 |
4.19 |
0.81 |
2.00 |
603014 |
BT40 |
.8750 |
4615777 |
1.00 |
6.00 |
4.19 |
0.81 |
2.00 |
603014 |
BT40 |
1.000 |
466360 |
0.94 |
3.34 |
4.19 |
0.94 |
2.38 |
603115 |
BT40 |
1.000 |
468290 |
0.94 |
6.00 |
4.19 |
0.94 |
2.38 |
603115 |
BT40 |
1.2500 |
466362 |
0.94 |
3.34 |
3.00 |
0.94 |
2.47 |
603113 |
BT40 |
1.2500 |
4615778 |
0.94 |
6.00 |
3.00 |
0.94 |
2.47 |
603113 |
|
Click
for
Price
and
Availability
|
BT50 |
.3750 |
463408 |
0.75 |
4.00 |
2.56 |
* |
1.50 |
602611 |
BT50 |
.5000 |
463409 |
0.88 |
4.00 |
3.00 |
* |
1.50 |
602713 |
BT50 |
.6250 |
463410 |
0.94 |
4.00 |
3.50 |
* |
1.50 |
602812 |
BT50 |
.7500 |
463411 |
1.00 |
4.00 |
3.88 |
* |
2.12 |
603011 |
BT50 |
.8750 |
466037 |
1.00 |
3.69 |
4.19 |
0.81 |
2.00 |
603014 |
BT50 |
1.000 |
463412 |
1.12 |
4.12 |
4.44 |
1.00 |
2.38 |
603128 |
BT50 |
1.2500 |
463413 |
1.12 |
4.12 |
3.00 |
1.00 |
2.50 |
603115 |
BT50 |
1.500 |
466663 |
1.12 |
4.12 |
3.00 |
1.00 |
2.75 |
603115 |
BT50 |
2.000 |
466845 |
1.38 |
4.88 |
3.50 |
1.38 |
3.88 |
603318 |
|
~
|
* indicates single set screw
Related Links:
BT Shank specs
Note:
The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
|
