Assembly and disassembly of Kwik-Switch II nuts
and triggers on Spindles and Master Holders

The following was scanned from Universal Engineering bulletin #17 on 11/22/10
I added the pictures and other noted information.

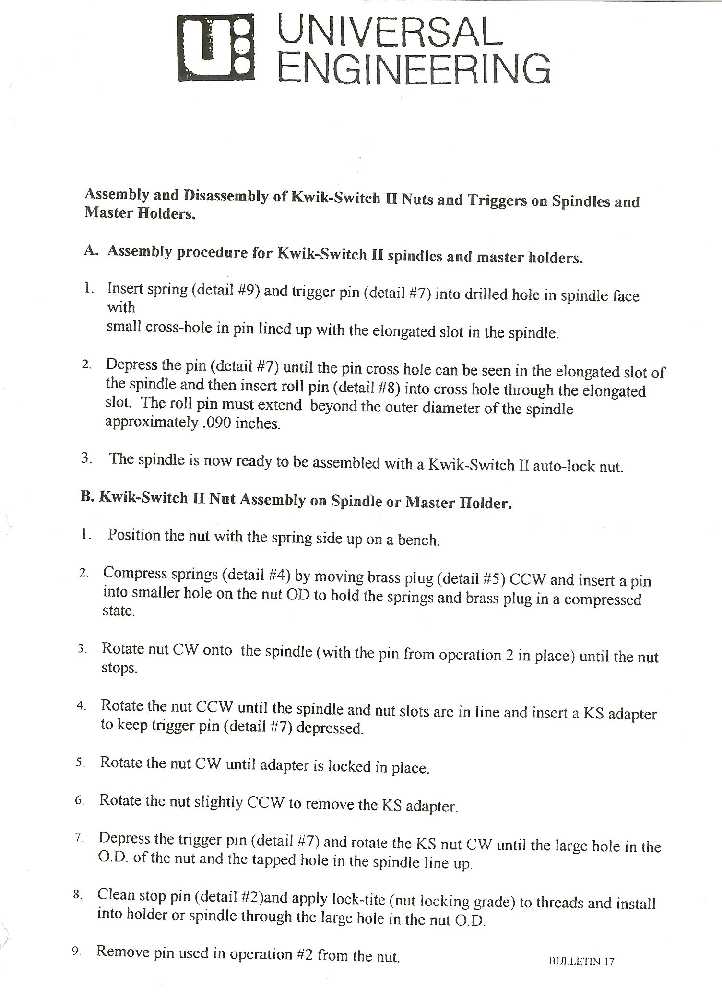

TSD Universal Engineering Assembly and disassembly of Kwik-Switch II nuts and triggers on Spindles - Page 1

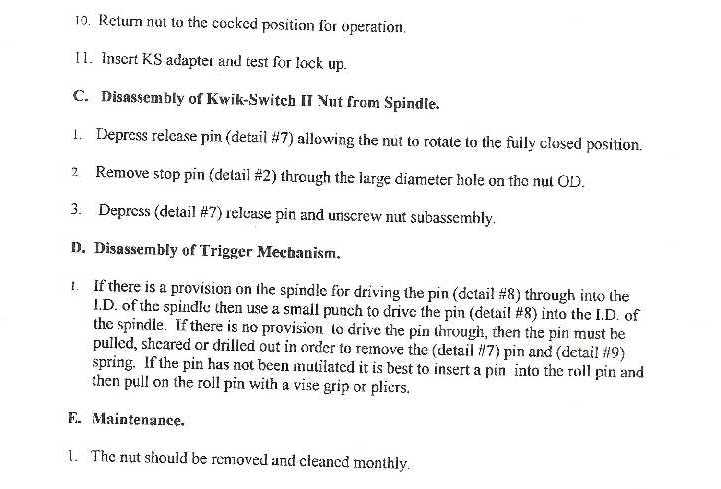

TSD Universal Engineering Assembly and disassembly of Kwik-Switch II nuts and triggers on Spindles - Page 2

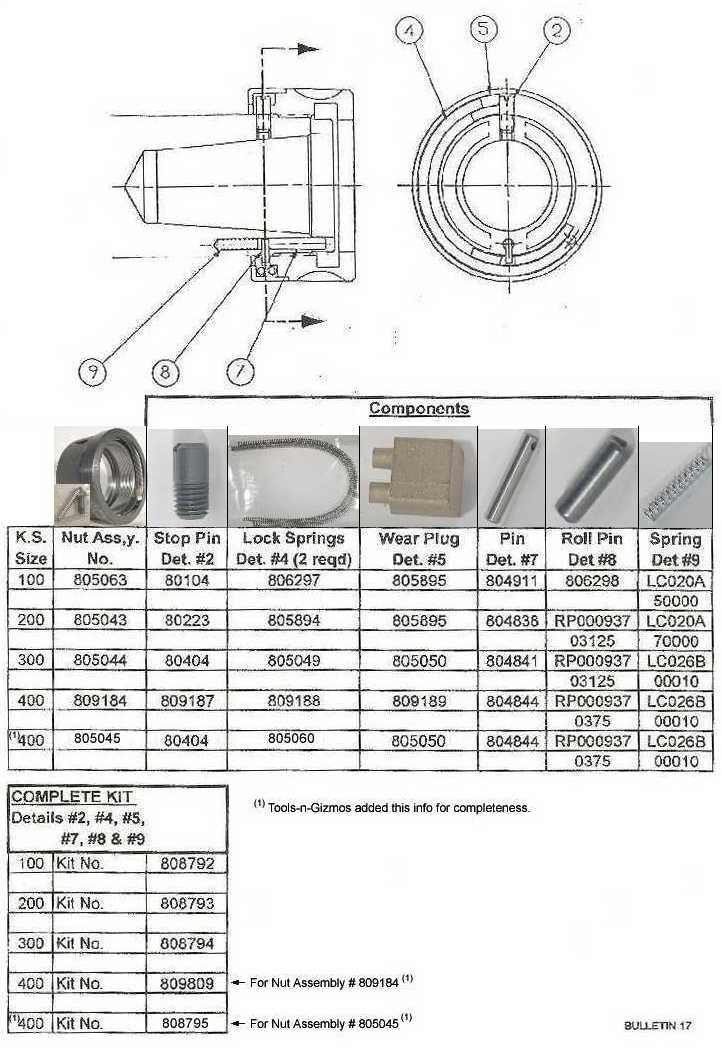

TSD Universal Engineering Assembly and disassembly of Kwik-Switch II nuts and triggers on Spindles - Page 3

Note: The specifications and information provided on this page are intended for part identification purposes only.
Although we believe them to be correct, dimensions should not be used for part construction or inspection.
